Galaxy
Price:
$ 45.00 USD
Profile
Front Panel

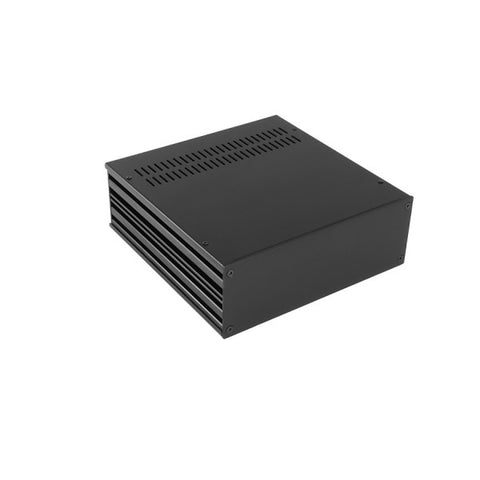

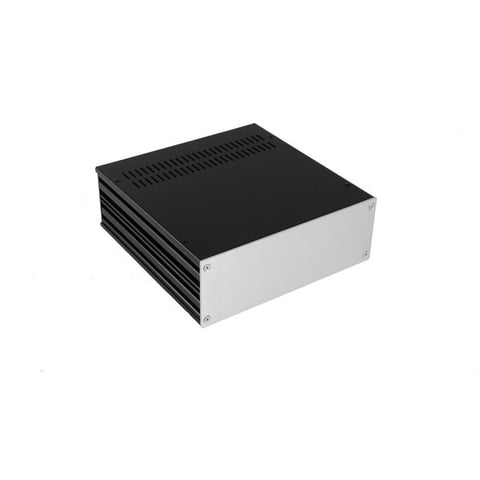

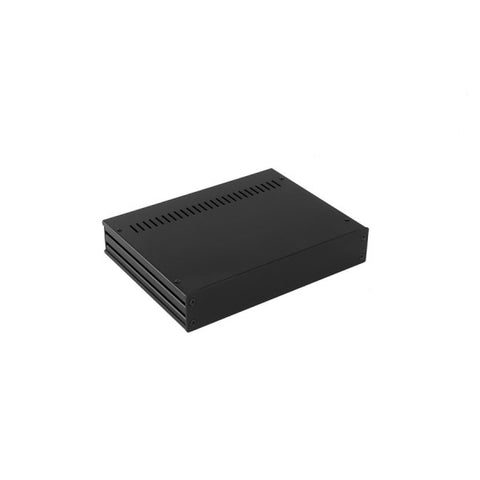

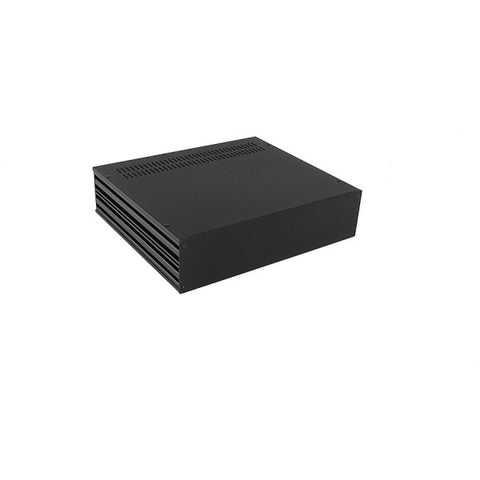

The Galaxy line makes a great home for small projects and has handy multi-purpose quasi-heatsinks on the sides.
The top and bottom covers and made of steel, while the rear panel is made of aluminum to make it easy to drill any needed holes.
Specifications
| Internal (mm) |
External (mm) |
Faceplate (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | H | W | D | H |
W | D | H |
W | D |
| 1GX247 |
40
|
210
|
170
|
42
|
230
|
176
|
44
|
234
|
3
|
| 1GX287 |
80
|
210
|
170
|
82
|
230
|
176
|
84
|
234
|
3
|
| 1GX283 |
80
|
210
|
230
|
82
|
230
|
236
|
84
|
234
|
3
|
| 1GX388 |
80
|
310
|
280
|
82
|
330
|
286
|
84
|
334
|
3
|
| Side panels |
10mm quasi heatsinks, black anodized aluminum
|
||||||||
| Covers |
1mm steel with black anti-scratch paint |
||||||||
| Front Panel |
3mm anodized aluminum
|
||||||||
| Rear Panel |
3mm black anodized aluminium
|
||||||||
Dimension diagram
