Preamplifier project by Nelson Pass

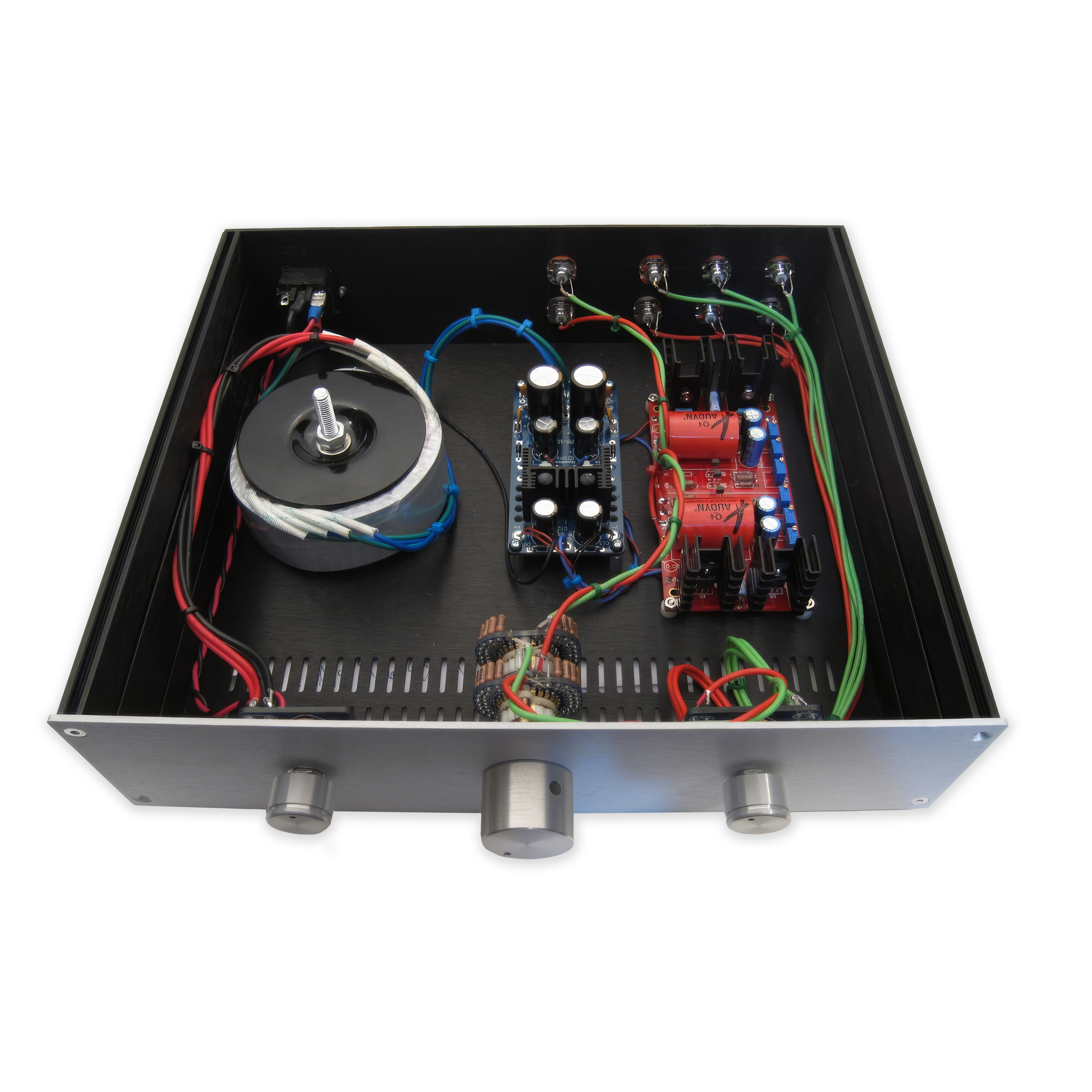

BA3 Preamplifier

The BA-3 gain stage can also be used as the primary building block for a wonderful pre-amplifier.

Key Information

  • Preamplifier Project
  • Designed by Nelson Pass
  • Advanced Difficulty
  • Only PCBs Available
  • Basic Build Guide

Highlights

  • Simple
  • No feedback
  • Current drive

Description

The BA-3 gain stage can be used as the primary building block for a preamplifier.  Nelson Pass explains his philosophy behind the circuit design in the Burning Amp Number Three Article.  A number of people have successfully built the pre-amplifier and love it.  There are several threads in the forums to provide support for adventurous DIYers.
