Elekit TU-8150 6AQ5/6V6 Single Tube Amp/HPA Kit
$ 485.00
- Description
The TU-8150 is the little brother to the TU-8200 and allows for both tube and opamp rolling so you can have fun tuning the sound to suit your own listening preferences.
Features
- Ultra linear, triode and pentode modes selectable using a jumper
- Headphone jack
- Ample space for larger capacitors

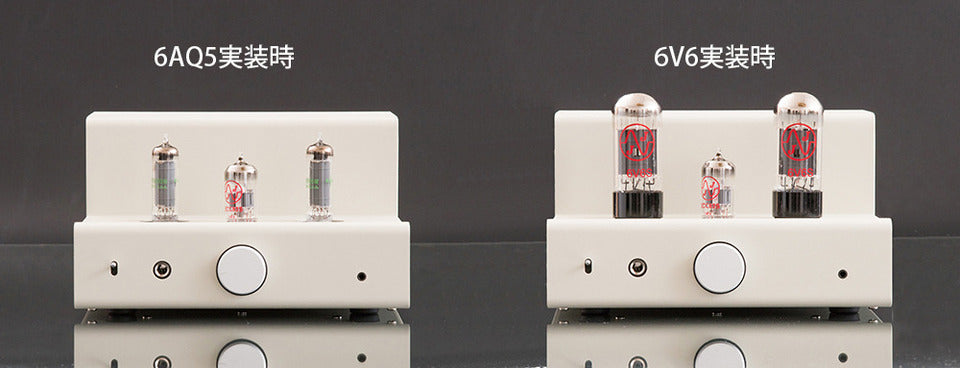

Tube Rolling
- Natively supports 6005W/6AQ5
- Supports 6V6 by installing the included PCB adapter
Opamp Rolling
- Includes NJM4580 Opamp
- Compatible with many other aftermarket Opamps such as Burson Dual-V5i and Dual-V6
Included Tubes
- 1 x JJ 12AX7/ECC83
- 2 x 6AQ5W/6005W
| SPECIFICATIONS: | |
| Model |
TU-8150 |
| Circuit configuration | Vacuum tube SET Amp |
| Output stage |
UL 2.9W +2.(W Pentode 2.9W + 2.9W Triode 1.6W + 1.6W (8 ohm) |
| Tube options |
Output tube : 6005W (standard) x 2 pcs options : 6V6 X 2 Voltage amplification tube : 12AX7 x 1 pcs |
| Rated input |
140mV (INPUT-1) 410mV (INPUT-2)*UL connection |
|
| Frequency response (-3dB) |
20Hz - 50kHz |
|
| Residual noise (IHF-A, 8ohm load) |
75uV RMS |
|
| Input terminal |
INPUT-1 (Front) 3-pole mini jack(priority) INPUT-2 (Rear) RCA jack |
|
| Output Terminal |
SP output terminal |
|
| Power voltage |
AC 50/60Hz (115V and 230V) IEC standard 3P inlet |
|
| Power consumption |
28W * no signal |
|
| Dimensions |
W210 x H122.5 x D252 |
|
| Weight |
Approx 3.5 Kg |
