H2 Harmonic Generator

Price: $ 12.00 USD
Ships from our warehouse in Massachusetts
What's in the Box?

1 x PCB

2 x Selected J113 JFETs (See Article).

Product Description

The Nelson Pass H2 Harmonic Generator, Version 2 is a versatile project. It can be used as the basis for a pre-amplifier and/or as a wonderful tool to adjust the 2nd Harmonic distortion of a system to taste.

Links

  • 5 stars: 10 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
I
Ian F.
Harmonic Generator

Nice little circuit that adds body and improves sound stage. I made it as unity gain. Thank you to Nelson.

C
Charles O.
Beautiful...

Beautiful sound, beautiful in its simplicity. Mr. Pass has taken all the guesswork out of selecting the jfets. Ridiculously low price, easy build, with stunning results. Dead silent. Rich, natural sound. Will probably end up building one or two more.

M
Mark P.
H2

Simple device that works great. It was a quick and fun to assemble. It really enhances the overall sound quality.

W
William H.

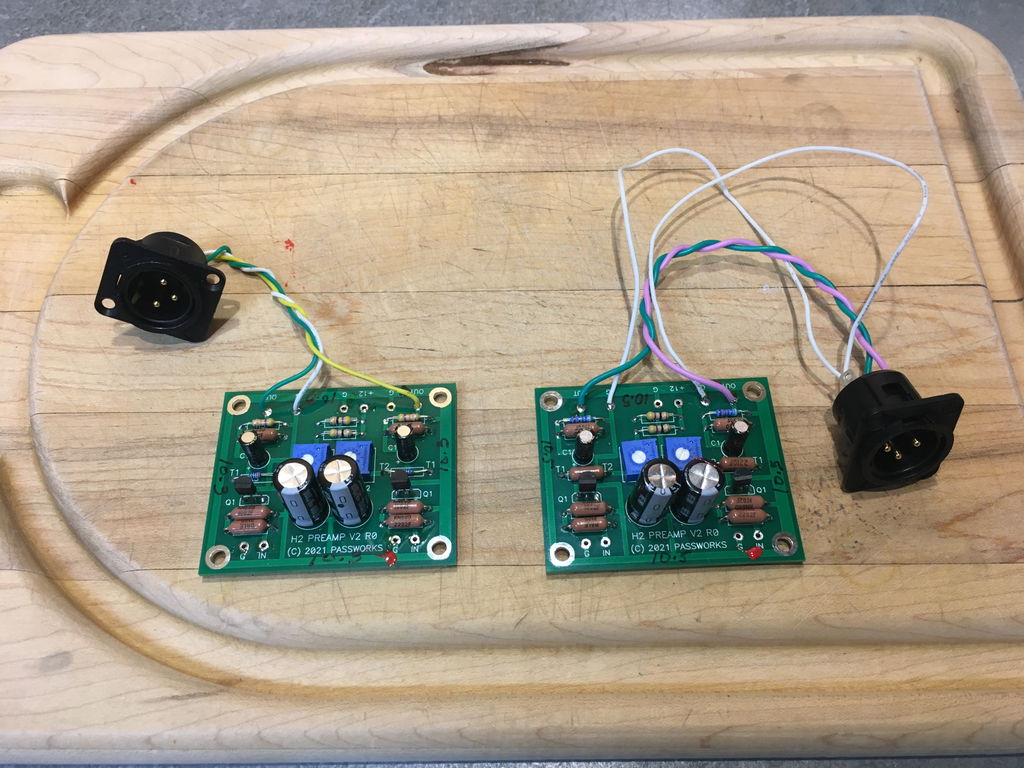

I ended up building three of the kits, one as a stereo version, using RCA's with unity gain, so it could be used inline from a preamp to an amplifier. The other two kits, I built a Balanced version, one kit for each channel, once again with unity gain so it could be used inline from my Balance BA2018 preamp to my ALEPH J amplifier. All of these projects were built using parts and enclosures from the DIY audiostore.

S
Steve K.
Beast of a Minimalistic Circuit!

This platform is a beast! Wonderful levels of even and odd harmonics with about a 12dB range of effective saturation. I’ve tailored my units for line-level sources and even customized it to work with a Baxendall EQ circuit follower. Very flexible and affordable…

g
george o.

Just what I wanted

V
Vincenzo L.
H2 Harmonic Generator - comments

Hello it works well, improves the sound stage, the presence and placement of the instruments. I recommend it to try.

R
Rudolf S.
H 2 generator

Very useful item, great fun.

m
mkane k.
H2 Harmonic generator

Really softens thing up thanks. Wouldn't be without one.

-
- H.-.
Nice project with an interesting sound.

I was looking to experiment and saw these boards and decided to build a couple of them.
They are very easy to build and provide an interesting sound (fuller sound).

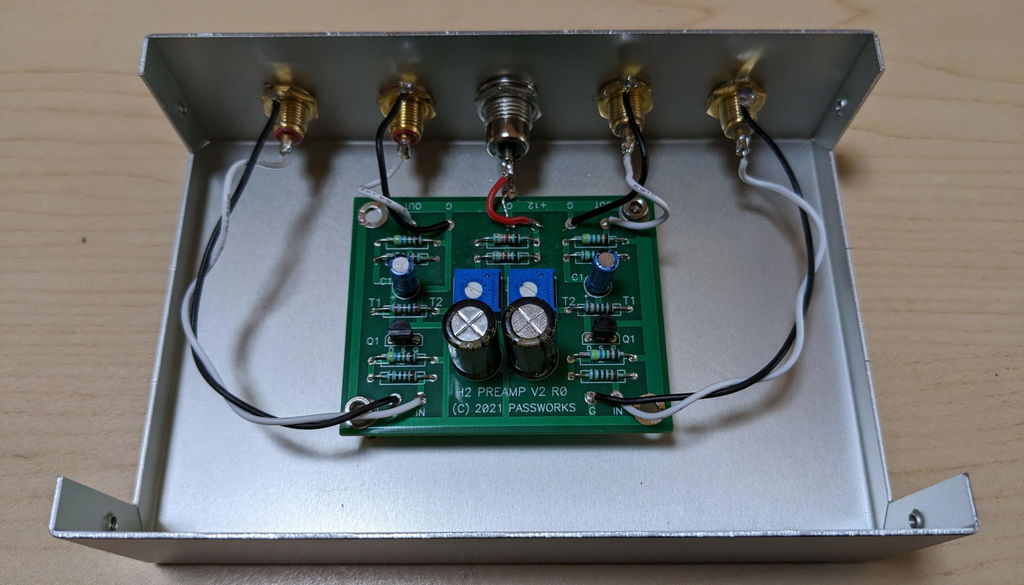

I wound up building them for unity gain so I could put them in line with my
existing system, but they would make a nice building block for a simple preamp.
