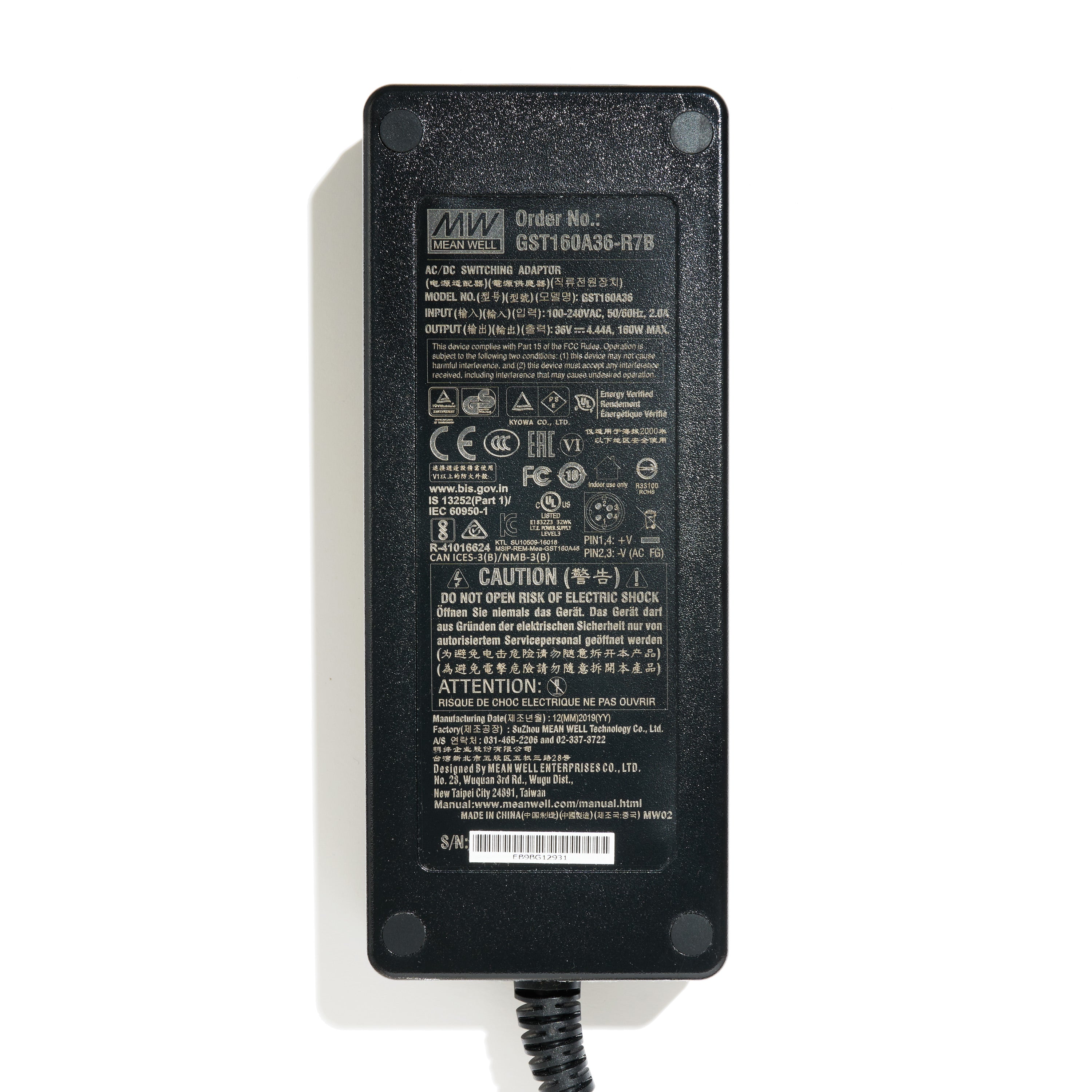

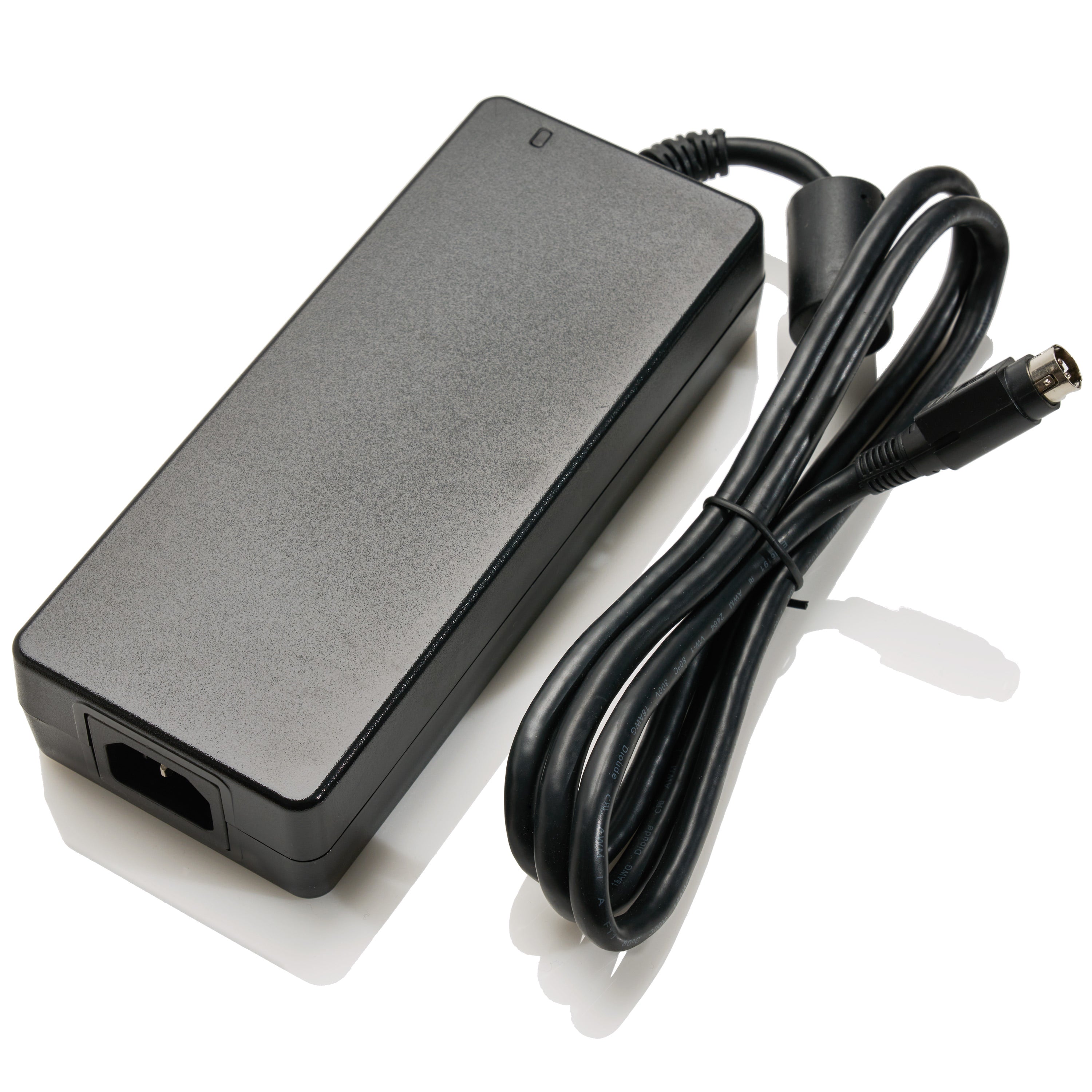

Meanwell 36V power supply and power cord
This is a high quality 36V universal SMPS, as used in the DIY Sony VFET amplifier. It takes an input of 85-264VAC at 47-63HZ via a standard IEC320-C14 "Kettle Plug" AC inlet. It outputs 36V through a R7B 4-Pin DIN output jack.

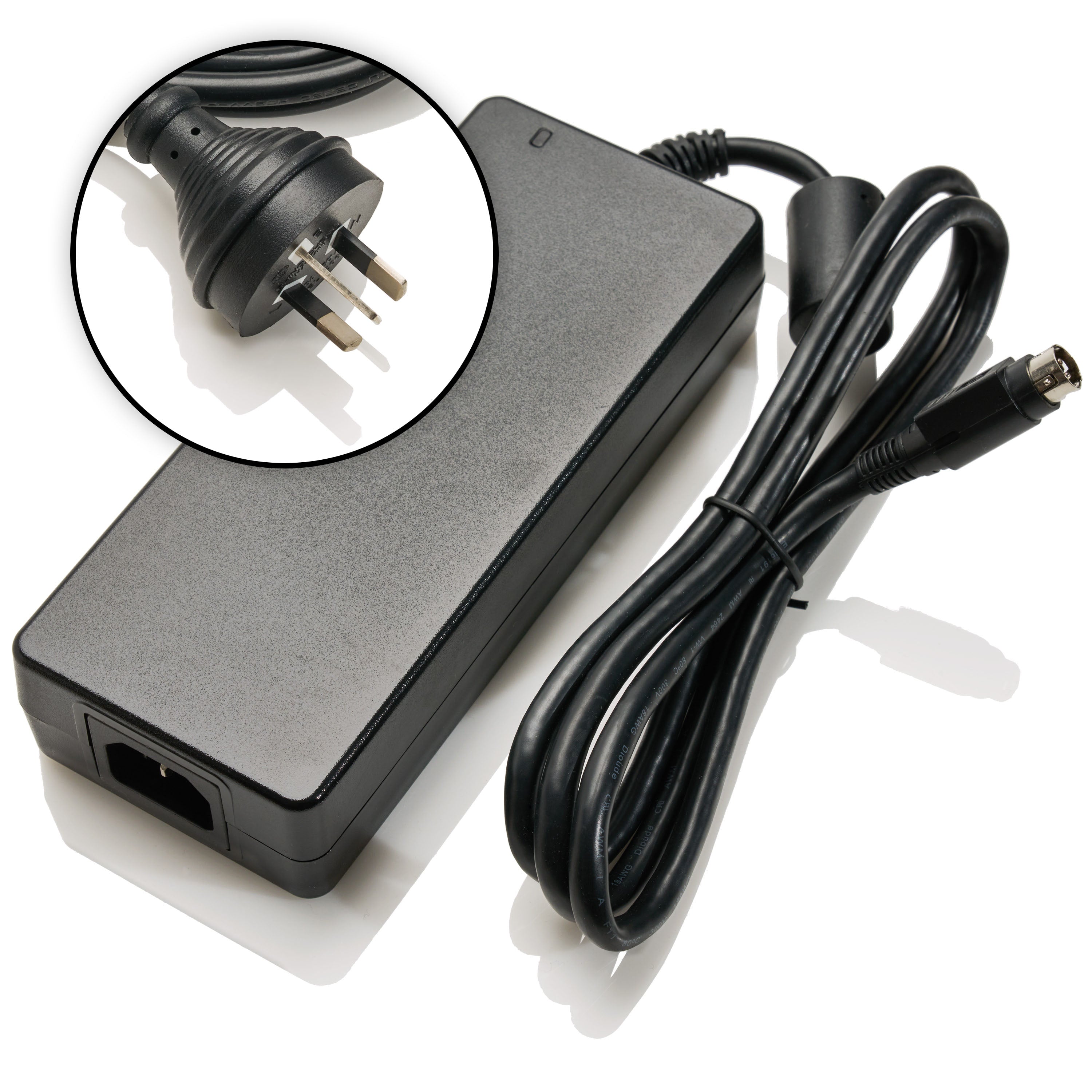

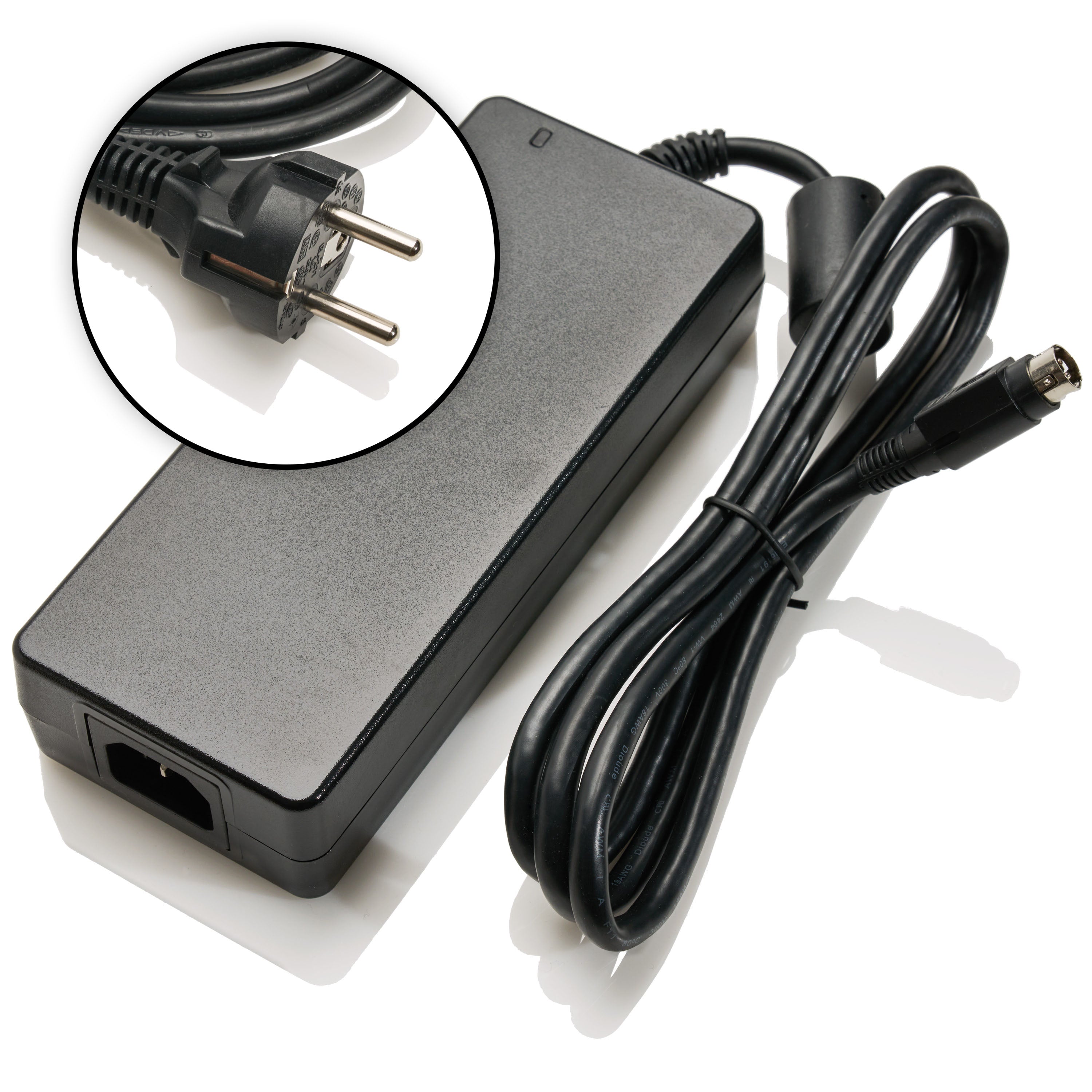

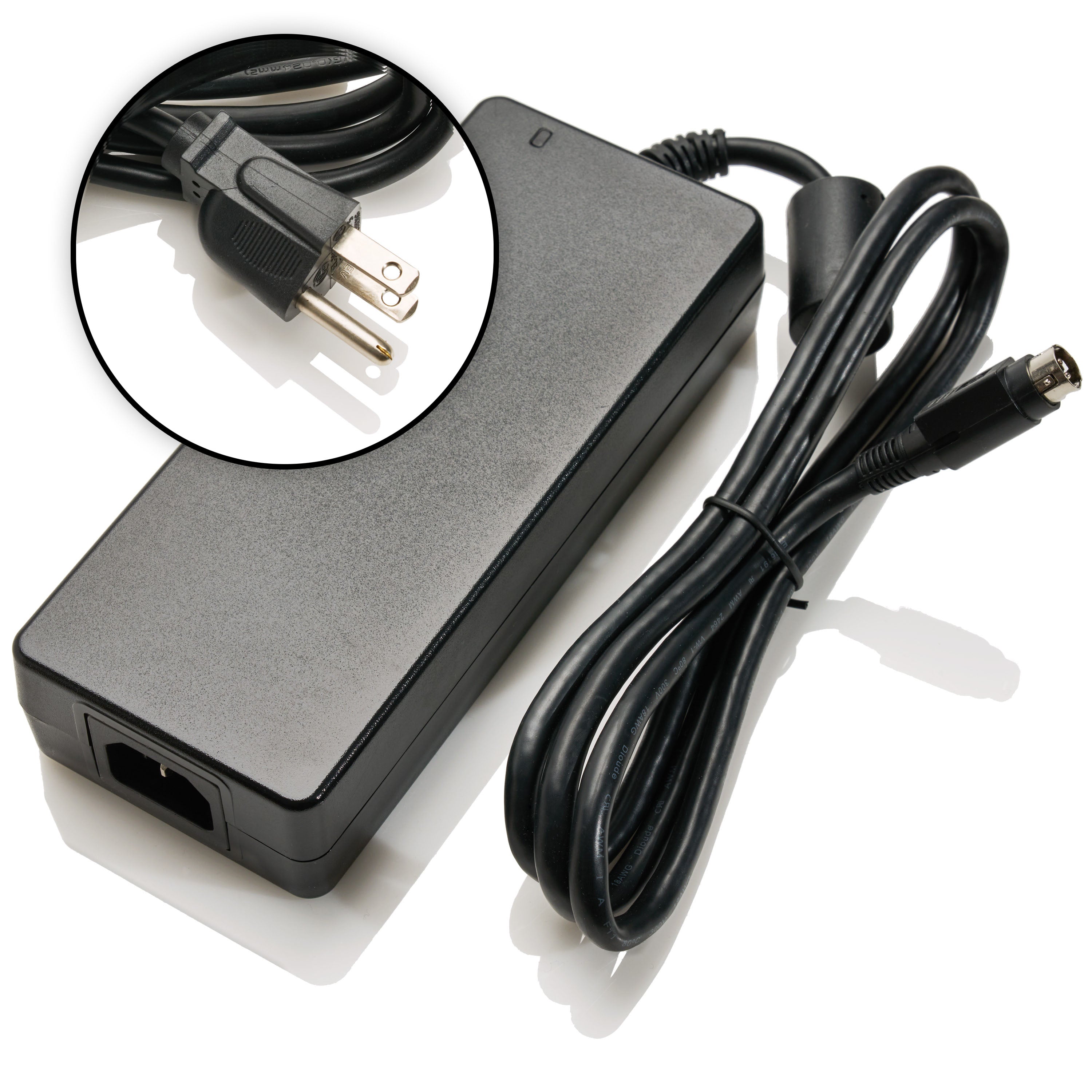

A 6' power cable is included fitting with your selection of US/CA/MX/JP (Type B), EU (Type E), or AU/NZ (Type I) AC plugs. If you have a different plug type in your country, you'll need to borrow an IEC cord ("kettle plug") from your least favorite piece of equipment or use a plug adapter.
Why this power supply?
We tested many power supplies to determine the best SMPS for the community's do-it-yourself audio needs. MeanWell supplies are ideal for this application.
Unlike most PSU manufacturers, 99% of MeanWell's business comes from sales of power supplies bearing the MeanWell name. Over 40 years they've grown to be the 5th largest PSU manufacturer in the world, and the only one in the top 5 who sells supplies using their own brand name.
The result is a brand that has become synonymous with quality and you can be assured that purchasing this PSU is a long term investment in quality power for your projects, and testament to that is the fact that they back this PSU with a 3 year manufacturer warranty.
- No load power consumption < 0.15W
- Short circuit, overload, over voltage and over temperature protection
- 3 year warranty
- Model: GST160A36-R7B
- Output Voltage: 36V
- Output Current: 4.44A
- Output Power: 160W
- Input Power: Universal 85-264VAC 47-63HZ
- Dimensions: 72 x 35 x 175mm
- Weight: 660g
- Certifications: CB/CE/EMC/FCC/TUV/UL
- Working temperature: -30C to +70C
- Specification Sheet
