F-4/BA-3 Transistor Kit

Part of the F4 project
Choose ConfigurationCurrently Selected: Transistor Kit
Essentials Kit
$ 80.00 USD
Circuit Boards
$ 25.00 USD
Please note: the numbers on the MOSFETs are ID numbers only, and are not related to their measurements nor their matching
Transistor Kit
$ 59.00 USD
$ 59.00
  • Description
  • Project Info
  • Links

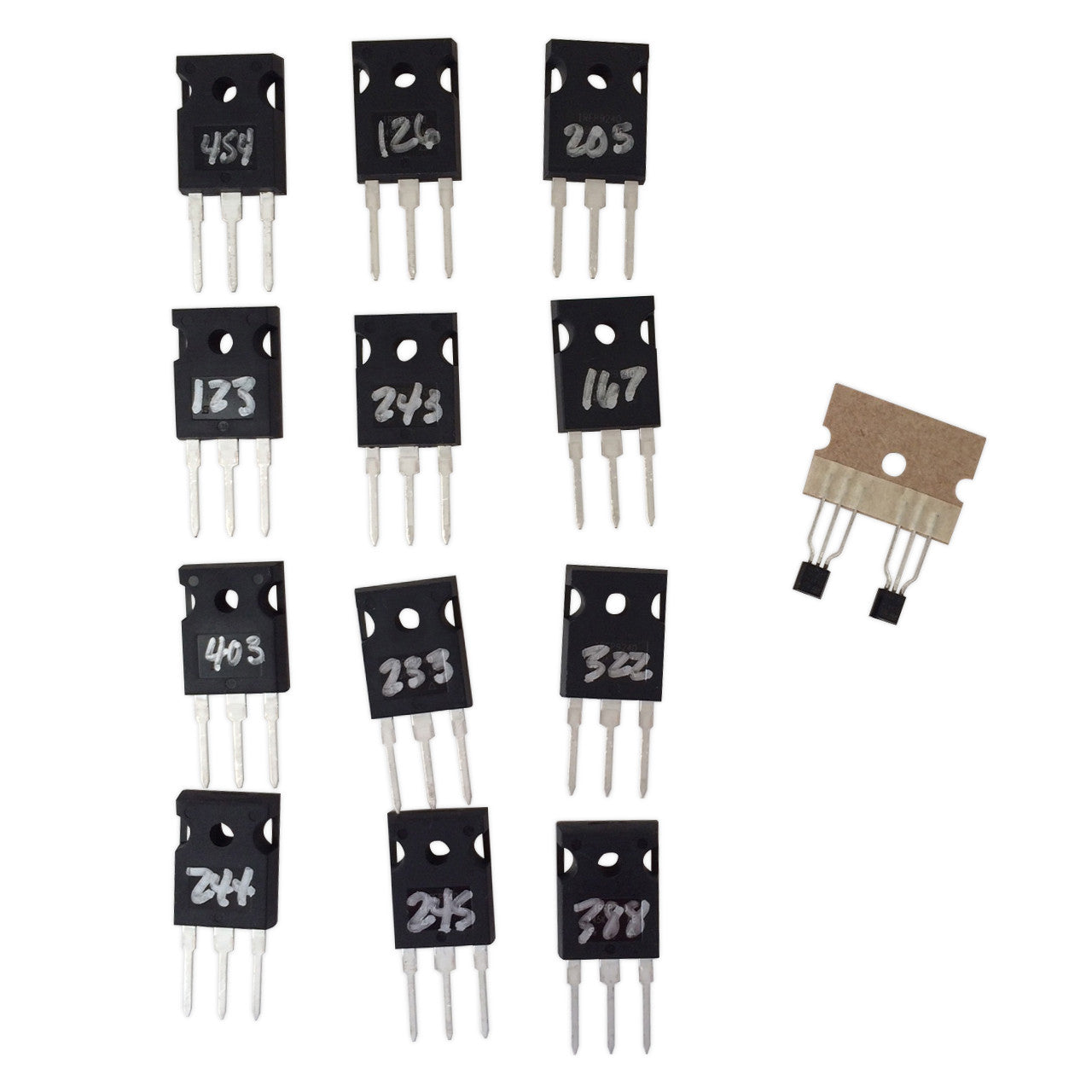

Included in this kit are the semiconductors needed to complete an two channels of the F-4 amplifier or BA-3 output stage, with the exception of the input JFETs.

  • 6 x IRFP 240
  • 6 x IRFP 9140
  • 2 x TL-431

Please note:

Any numbers on the MOSFETs are ID numbers only, and are not related to their measurements nor their matching

Photos include parts available at the time of publishing. Individual components are subject to change based on availability.



F4 Project

  • Power Amplifier
  • Designed by Nelson Pass
  • Intermediate Difficulty
  • Basic Build Guide
  • Only Essentials Kit Available
Contributors

Visit the F4 project page for more information about this project.
