Iron Pre SMD Single-Ended Essentials Kit
- Description
- Project Info
- Links

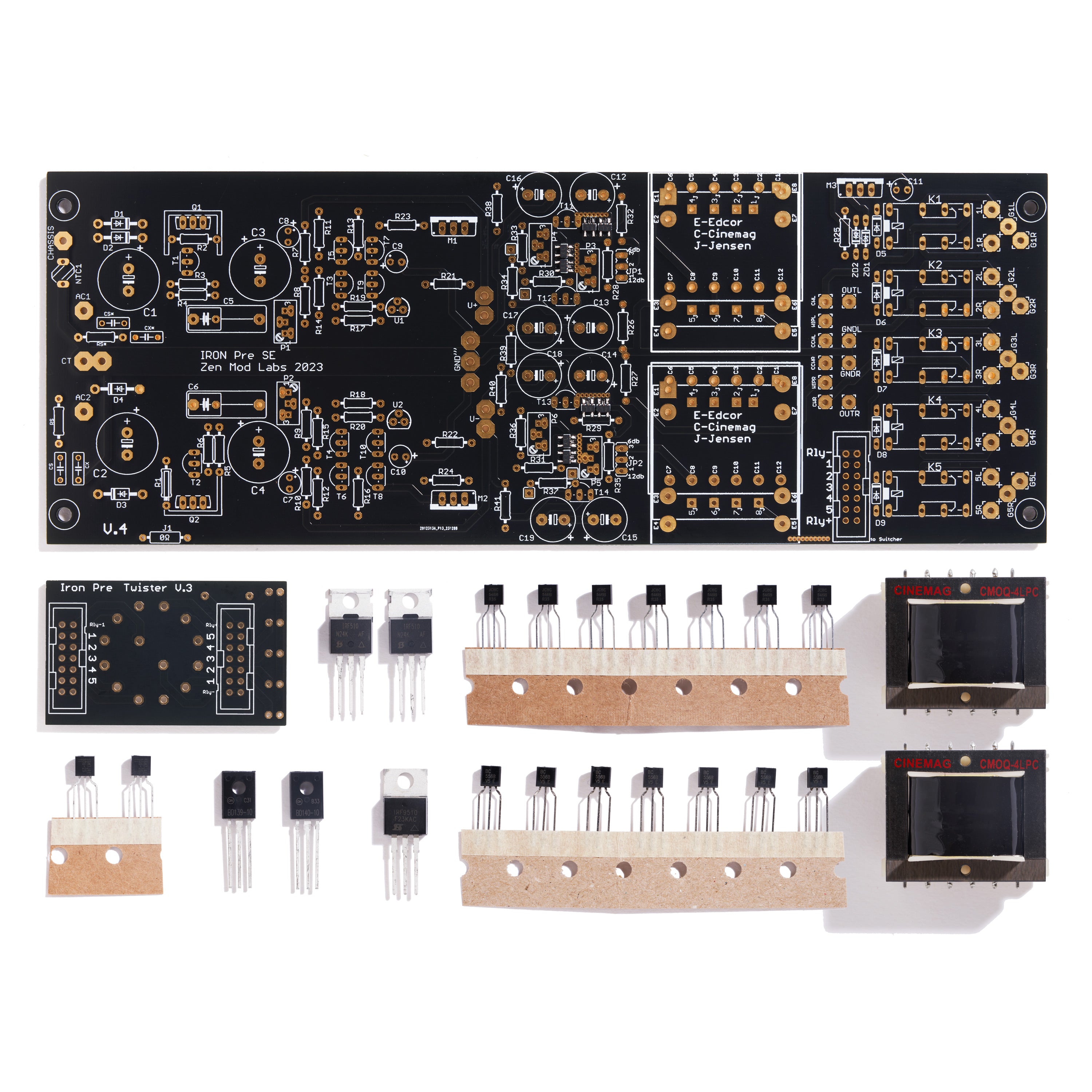

What's in the kit?
- PCB for for two channels with 8 matched Toshiba JFETs installed
- “Twister Board” PCB – Input Selection with LEDs and Mute
- All the active devices
- CineMag CMOQ-4HPC Signal Transformers
PCB Specifications (Main Boards):
- 2oz copper / ENIG, 2-Layer, 1.6mm thick
- PCB dimensions - 228mm x 85mm
- Mounting Hole Spacing – 220mm x 70mm
Iron Pre Project
- Preamplifier
- Designed by Zen Mod
- Intermediate to Advanced Difficulty
- Comprehensive Build Guide
- Only Essentials Kit Available
Contributors
Visit the Iron Pre project page for more information about this project.
Note - Photos include parts available at the time of publishing. Individual components are subject to change based on availability.
Customer Reviews
This was a fun build with some minor challenges for this newer DIYer with very limited EE knowledge. But with help from the community it all worked out.
The SE IronPre sounds lovely, even after just a few days of use. It replaced an Elekit TU-8500 (tubes) in my rig (with Elekit TU-8900 [2A3 tubes] and Zu DW6 spkrs). The IronPre presented clean open and perhaps more delicate (in a good way) sound, with stronger imaging. Still breaking in, but very satisfying so far.
I recently completed Iron Pre-SE. Build process was straight forward (excellent build guide). Parts, boards, and components are top notch. Frist, I have completed power supply, then in-put section and finally buffer and transformer section. All went smooth without any single problem, works for the very first moment.
Connected to my beloved mono’s Aleph 2 (jumper at 12db), followed by Monitor Audio Platinum 100 II bookshelf, this “little” gem shows it’s full protentional. The sound is just phenomenal…
Thank’s to Zen Mod and ItsAllInMyHead for sharing yours’s knowledge and passion to this community.
All the best,
Tony,
