BA2018 Linestage Circuit Board

Part of the BA2018 Linestage project
Choose ConfigurationCurrently Selected: Circuit Board
BA2018 Linestage Bundle
$ 60.00 USD
Circuit Board
$ 19.00 USD
Parts Kit
$ 45.00 USD
$ 19.00

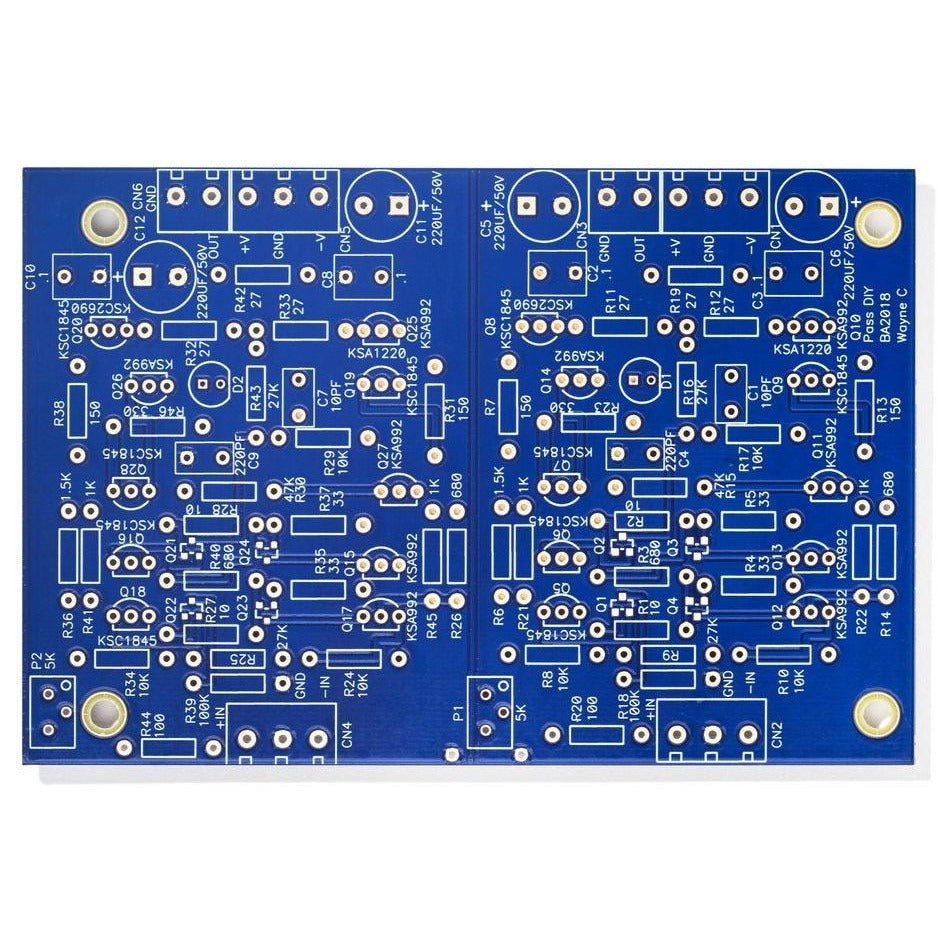

PCB Specifications:

  • One blue PCB good for two channels
  • 2oz copper with gold traces
  • PCB dimensions 85x127mm
  • Mounting holes 70x110mm

BA2018 Linestage Project

  • Preamplifier
  • Designed by Wayne Colburn
  • Advanced Difficulty
  • Basic Build Guide
  • Only Essentials Kit Available
  • Jim Tiemann (Build Guide)

Visit the BA2018 Linestage project page for more information about this project.

[{"variant_id":"31661837418569" , "metafield_value":""}]

BA2018 Linestage Circuit Board

$ 19.00 USD

Note - Photos include parts available at the time of publishing. Individual components are subject to change based on availability.

Customer Reviews

Based on 32 reviews
Steve W.
A Stunner

What a stunning pre-amp!!! Using it to drive my DIY Wolverine amp and what a combination, warmth, clarity, tight bass….absolutely amazing!!!


2 sets were completely populated and tested. Listened for weeks. Fully balanced. Sound great! And they are being housed in a better box.

Wolfgang A.
a great surprise out of an envelope.

very good pcb with all parts you need. peparing and soldering easy going because of the gold surfaces.
then starting it with one power adapter per channel. ( +-18v / 140 mA , two pair of LM337/ BD140 ). the two led awaked.
Then making the right adjustments. connecting the preamp into the complete audio system. now the best moment for diyaudio
builders - the first music ! Thank you Mr. Wayne Colburn for this Burning Amp.......regards and have always a nice time for you and the team of diyaudio !

Allen O.
What a stellar HPA

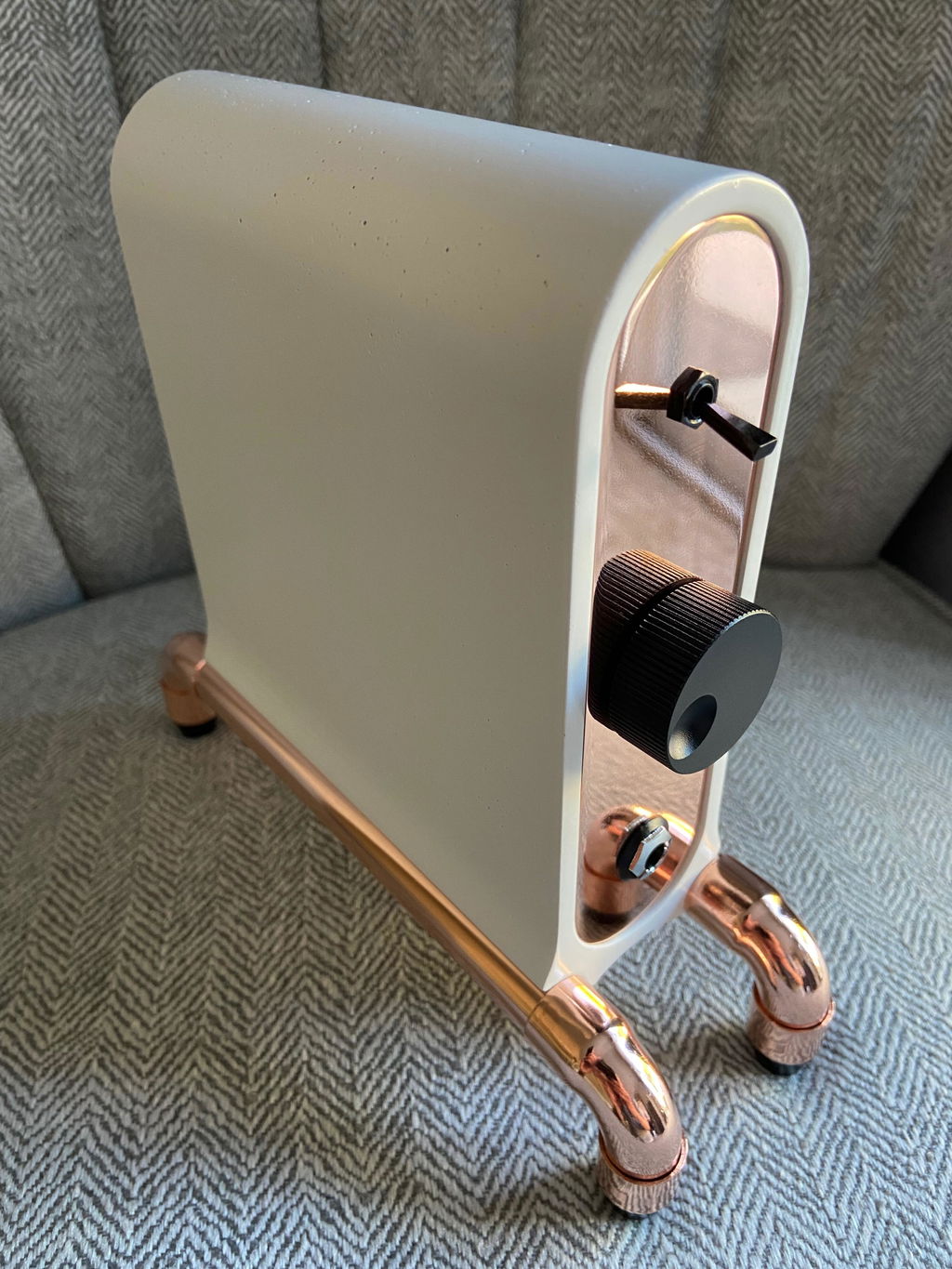

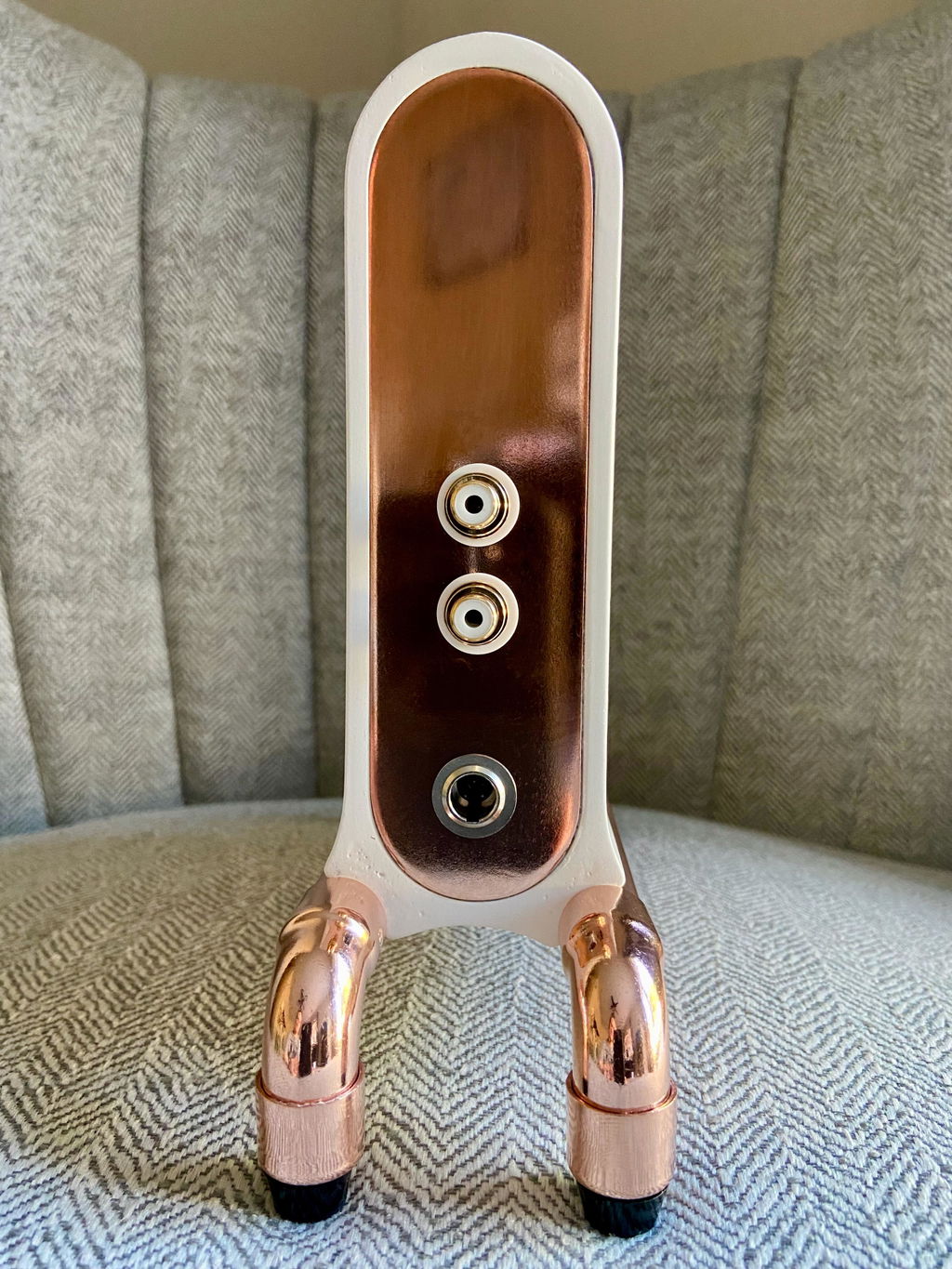

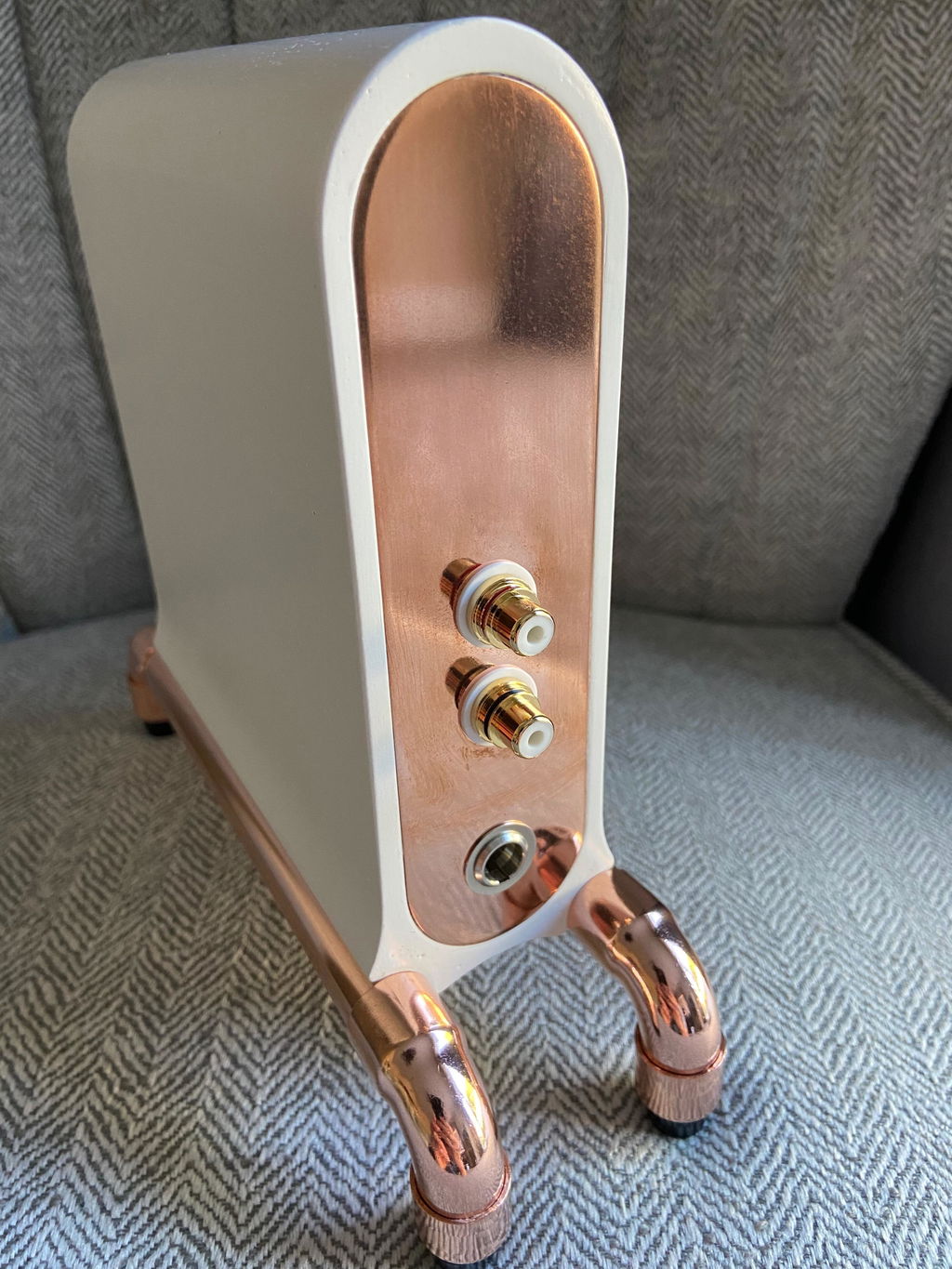

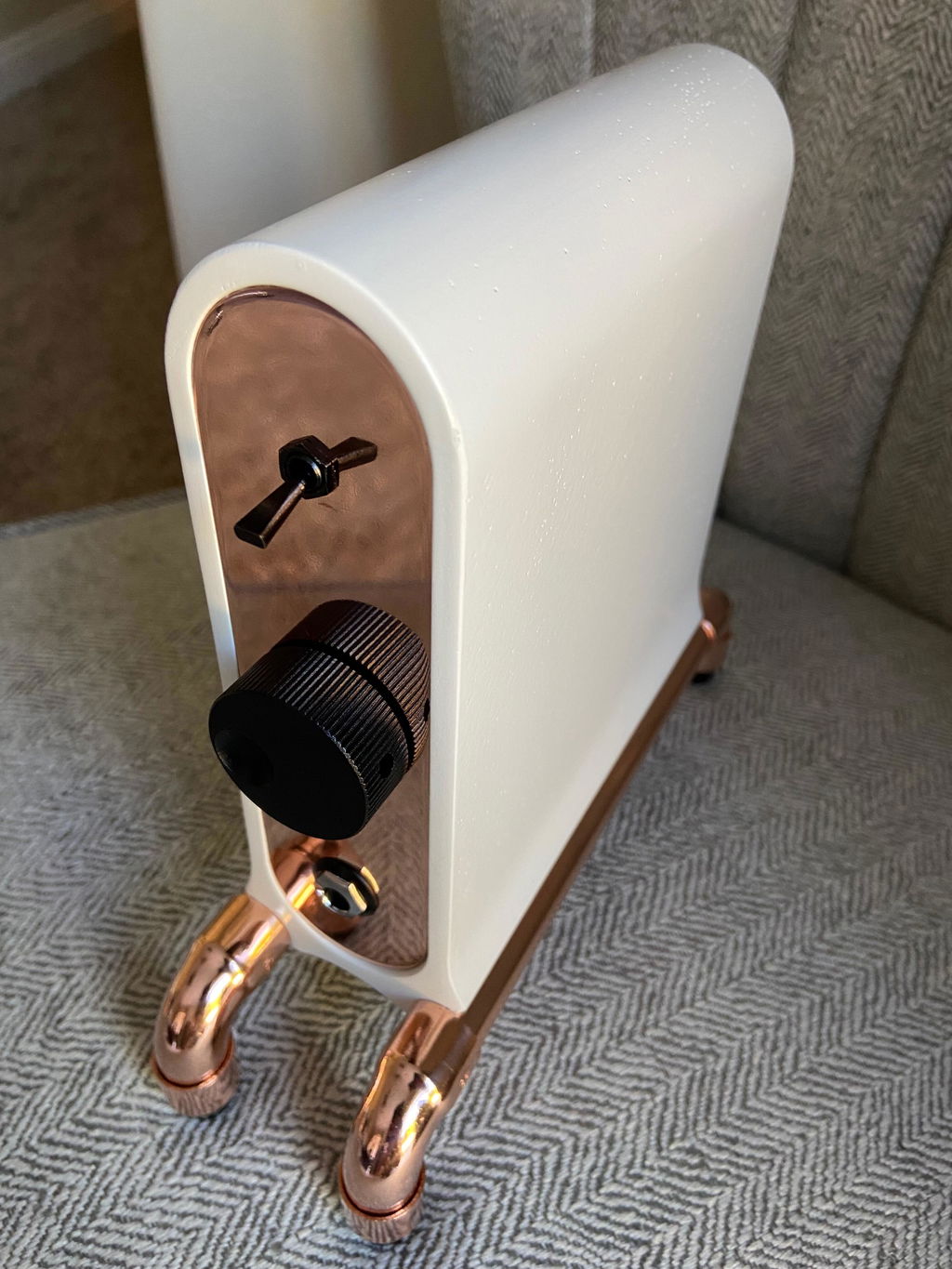

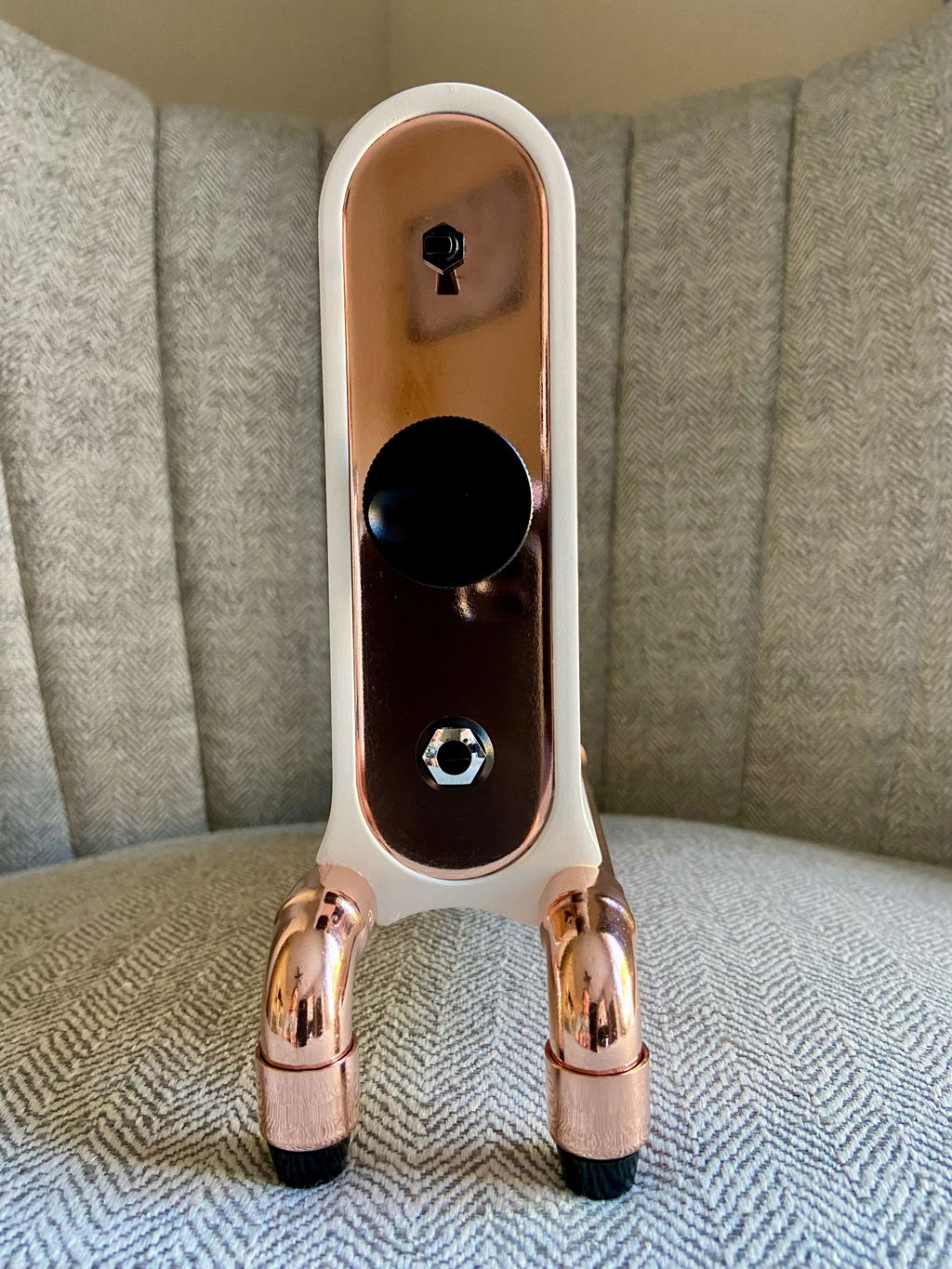

After reading several reviews, I took a bit of a chance and went with Waynes linestage as the core for my "Copper Watt" HPA project. All I can say is it has greatly exceeded all of my expectations. The sound is accurate and clean with no audible noise floor even with my most revealing headphones. I did some lengthy A/B testing with an extremely clean THX 888 HPA and I cannot hear any audible difference between the two. Very impressive for a DIY unit.

Everything about the build went smoothly. All of the supplied parts are of the highest quality especially for the price. Also, the fact that this can be used in many custom applications makes it an even bigger win. Highly recommended!

Bolke W.
Lovely, lovely sounds

A beautiful sounding machine. Paired with an Aleph J, the sound is detailed, precise, delicate, not bright or harsh. A straightforward build, apart from some SMD shenanigans (gremlins were blamed, but it was all me). Easily sorted with the excellent guidance from forum members. Thanks to all.

John D.
Mighty Might

There are so many amps and preamps to try, but this one has a origin story and credibility well deserved. It exceeded my expectations which were high! It also got me to finally learn to work with surface mount parts, a good thing 😁

If you are all about learning to build, build with this one and enjoy both the process and the result.
