Analog Crossover Network: LX Mini XO Kit

Analog Crossover Network: LX Mini XO Kit

  • 9900

This is the Analog Crossover Network: LX Mini XO KitTo purchase a complete kit or learn more about what the ACN can do for you visit the ACN Complete Kit page.

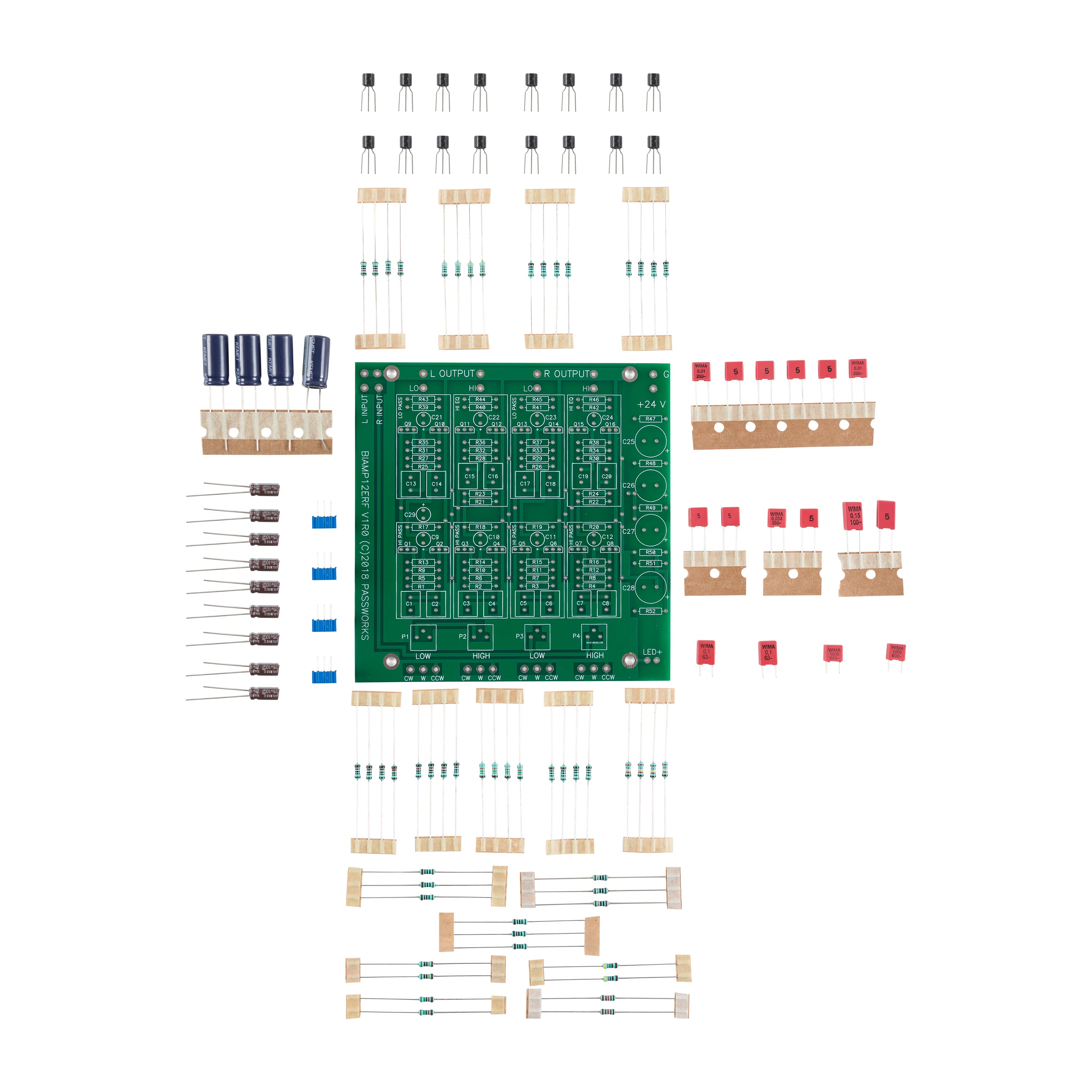

This LX Mini XO Kit contains the PCB, 16 matched JFETs, 16 matching resistors R13-20, R35-42, and all the other PC board parts mentioned in Nelson's article (Trim potentiometers, resistors and capacitors).


  • Printed Circuit Board (BIAMP12ERF-V1R0)
  • 16 matched N channel JFETs (Fairchild J113) with matching bias and tweaking resistors
    • Q1-Q16
    • R13-R20, R35-R42
  • All other PC board parts listed in Nelson's article
    • P1-P4
    • R1-R52
    • C1-C29

Not included

  • ACN Chassis
  • Any parts that connect to the chassis
  • Power supply


  • Dimensions: 5inch x 5inch / 12.5 cm x 12.5 cm
