Analog Crossover Network: Basic Kit

Analog Crossover Network: Basic Kit

  • 4900



This is the Analog Crossover Network: Basic Kit. To purchase a complete kit or learn more about what the ACN can do for you visit ACN Complete Kit page.

This Basic Kit contains the PCB, 16 matched JFETs and 16 matching resistors R13-20, R35-42.

Included

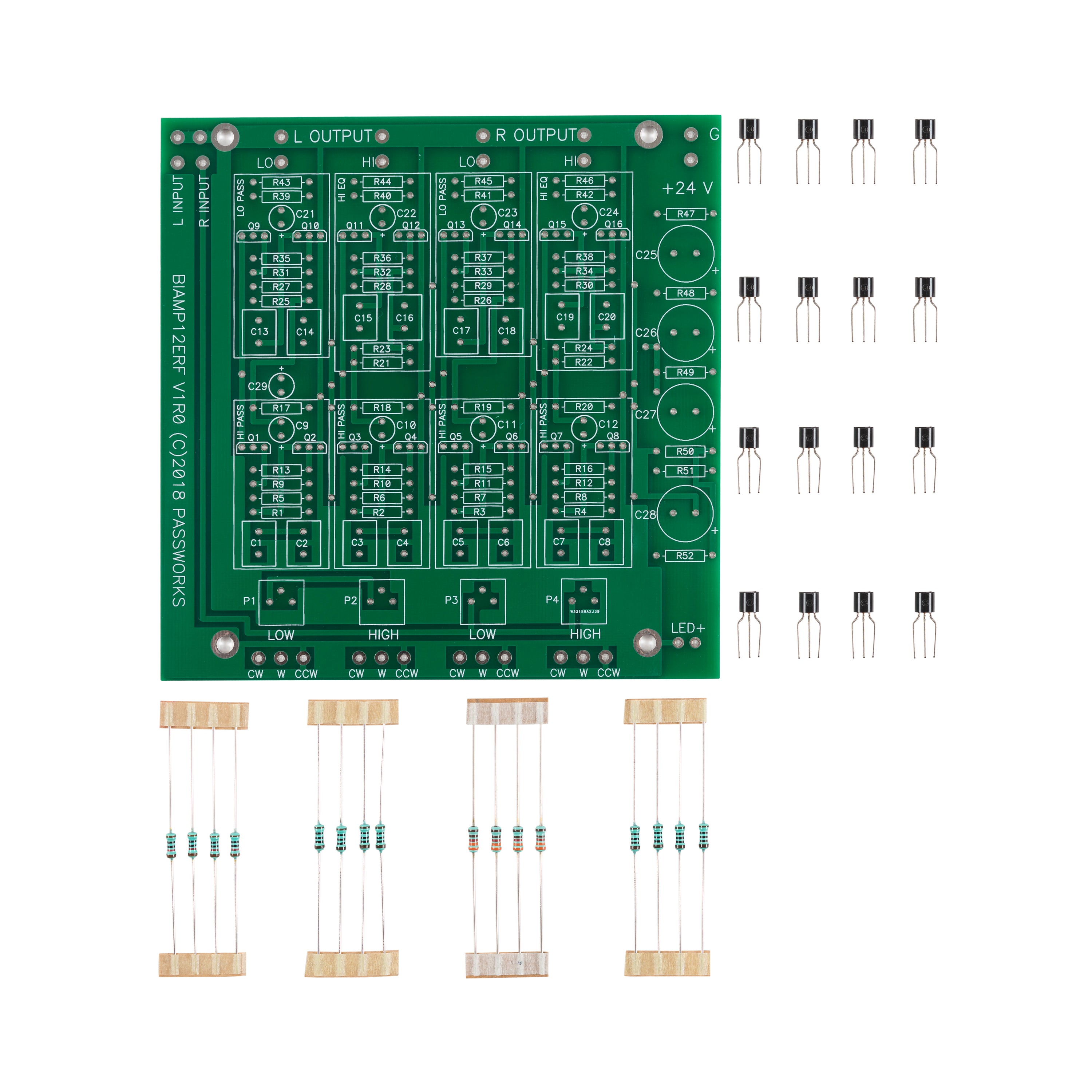

  • Printed Circuit Board (BIAMP12ERF-V1R0)
  • 16 matched N channel JFETs (Fairchild J113) with matching bias and tweaking resistors
    • Q1-Q16
    • R13-R20, R35-R42

Not included

Specifications

  • Dimensions: 5inch x 5inch / 12.5 cm x 12.5 cm
