F5M Core + PSU
- Description
- Project Info
- Links
Includes the following, good for two channels:

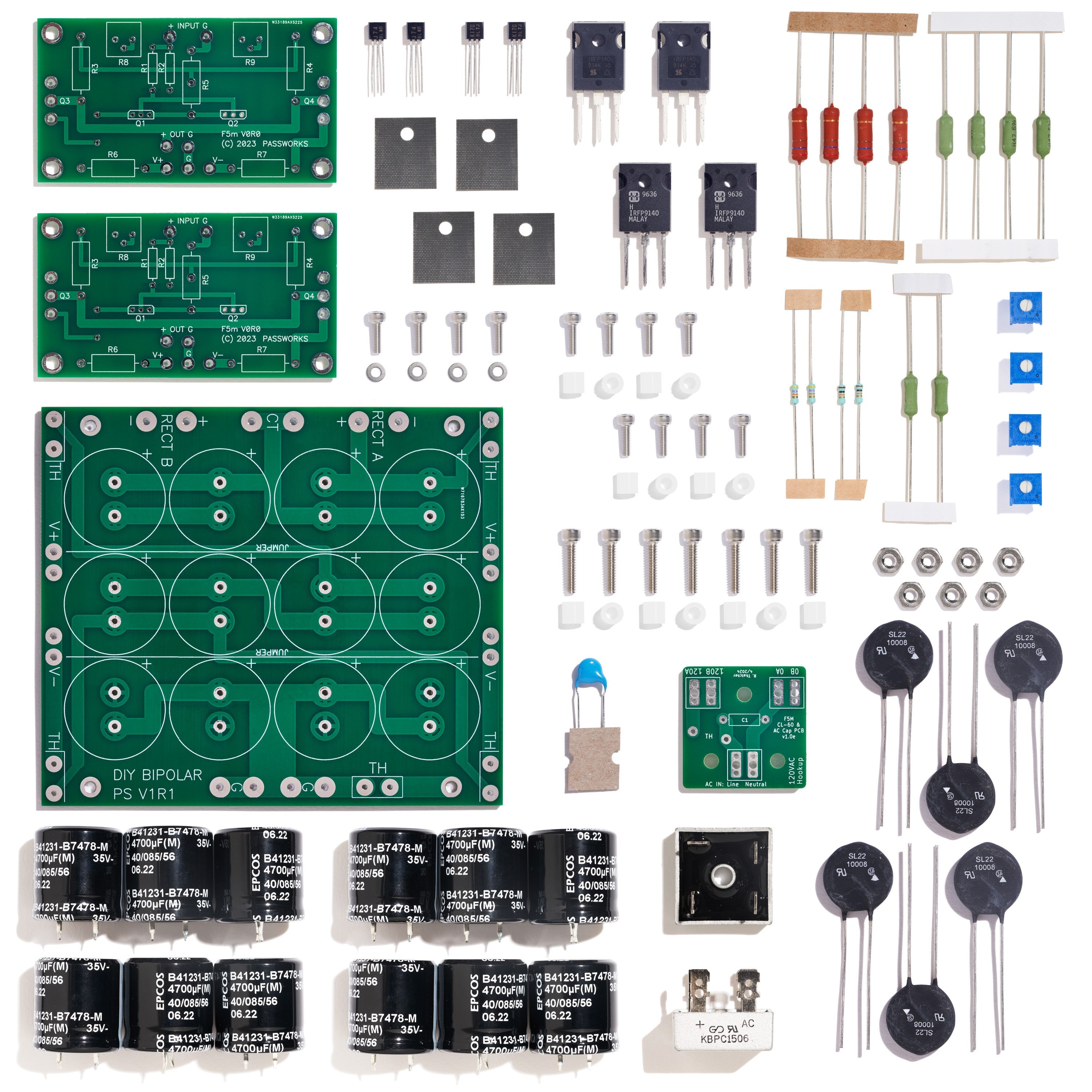

Single Power Supply
- 1 x F5M Core
- 1 x Bipolar Power Supply

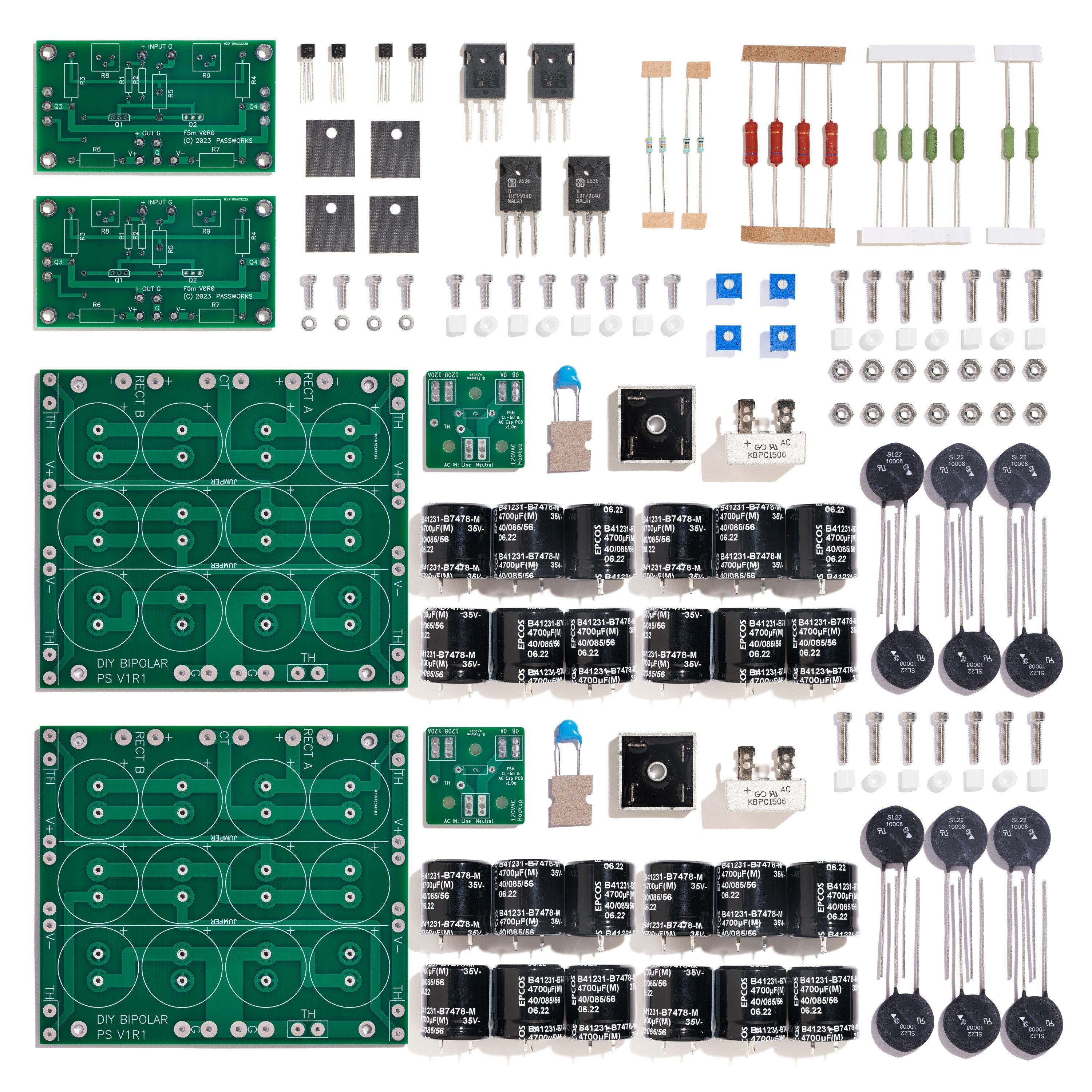

Dual Power Supply
- 1 x F5M Core
- 2 x Bipolar Power Supply
F5M Project
- Power Amplifier
- Designed by Nelson Pass
- Intermediate Difficulty
- Comprehensive Build Guide
- Only Essentials Kit Available
Contributors
Visit the F5M project page for more information about this project.
Goes well with
Note - Photos include parts available at the time of publishing. Individual components are subject to change based on availability.
Customer Reviews
A great performance from such a simple and reasonably priced project.The next chassis dual mono power supply and pair of boards built and ready to go but I need another pair of boards to try a balanced version as soon as available.

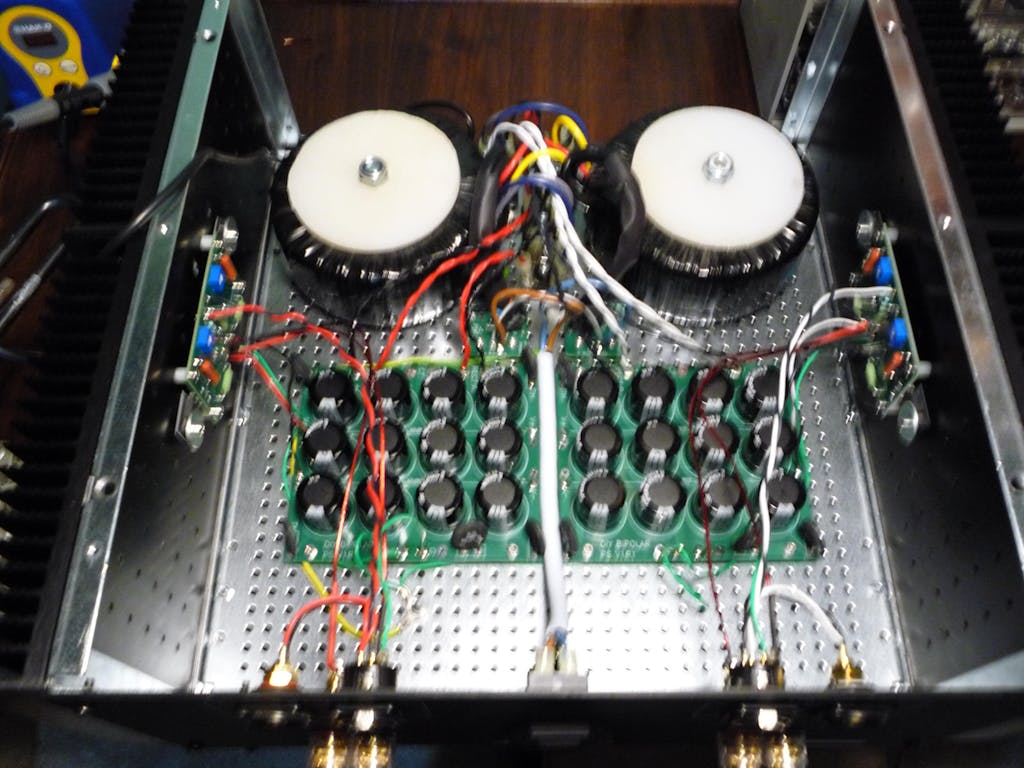

Absolutely astonishing results. Could not be more satisfied with the quality & the sound. Built dual mono.
Thanks DIYaUdio
Coming to terms With the quality of reproduction of this kit,I think I like this kit better than the version 3 F5, Which is saying a lot…… I think a lot of the builders will agree. This kit has a great tone.

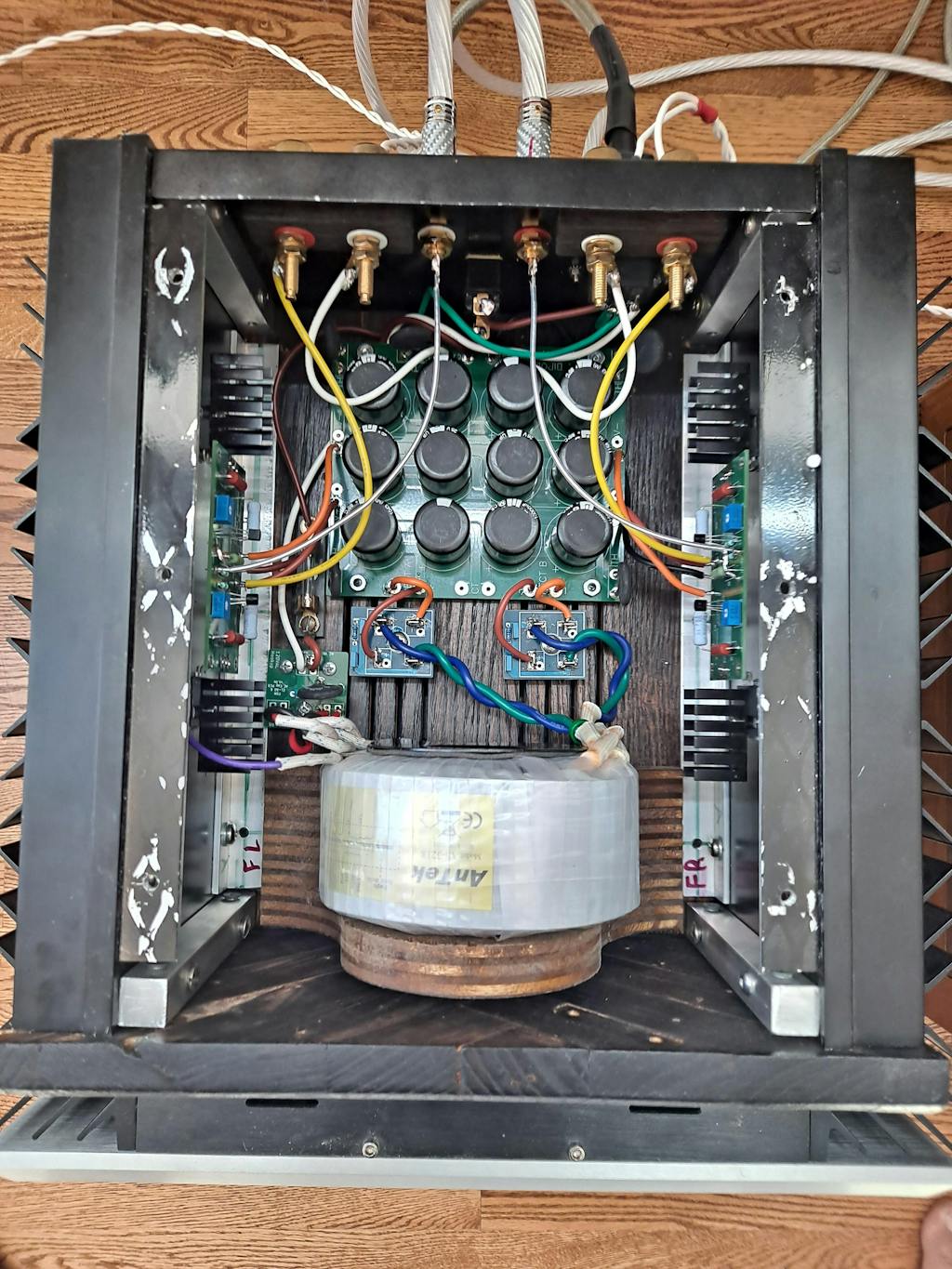

Running 1000va x 4 secondaries,35v rails…each Mundorf 33,000uf
Pass has done it again. I have had the opportunity to spend time with a good variety of Pass amps. Which include both the XA.5 and the XA.8 series. This F5m has something special to it. Is it as dynamic? I would say no. But much more than it has any right to be.
Where it shines are the mids and highs. The 2nd order harmonic distortion created by the careful selection of output mosfets really give this amp a wonderful sound.
Should you build it? Well, I think for the price and it's simplicity, I would say it is a no-brainer...
The F5M is a really fun build, lots of information in the DIY forum with lots of great people to help along the way if needed. The sound is incredible!
