The Deluxe Chassis is the ultimate amplifier playground. We don't know of another chassis that makes life as easy for DIY Audio enthusiasts.
Dimensions
| (mm) |
Height |
Width |
Depth |
| Internal |
210
|
360
|
400
|
| External |
216
|
440
|
413
|
| Faceplate |
220
|
450
|
10
|
Note - Installation of the perforated baseplate reduces the interior working height of the chassis by approximately 1cm.
Heatsink Specifications
-
-
Drilled and tapped mounting holes following the new

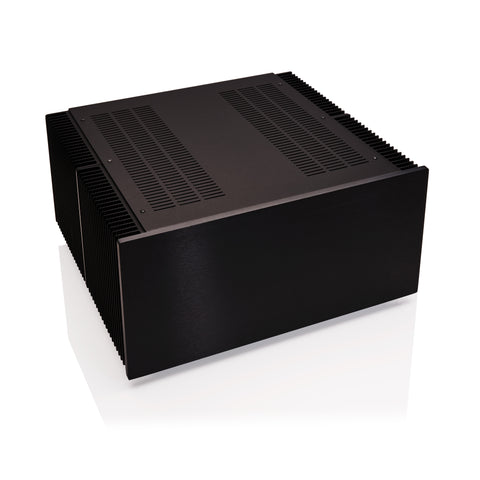

Faceplate
- 10mm anodized aluminum faceplate

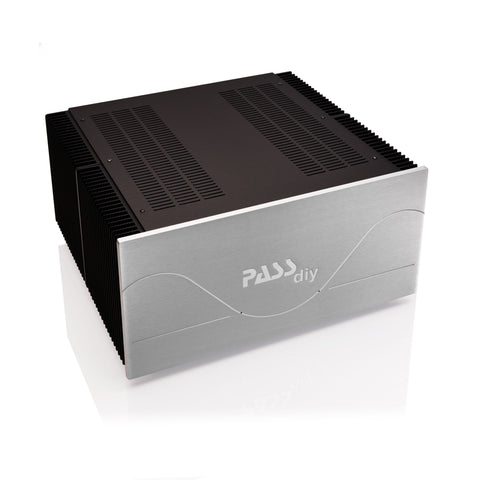

- 9 drilled and tapped M3 mounting holes. Useful for mounting boards for housekeeping circuits or PSU / Filter boards in the larger chassis, or as LED pilot holes. The PASSdiy faceplate has two additional holes fully drilled through the faceplate for LEDs.
- Designed so risers can be bolted to the chassis using two axis to create stable interior platforms within the chassis and maximize the use of interior volume
Back Panel
- 3mm anodized aluminum. Designed to work perfectly with our optional back panel parts kit
- New screen printed back panel for a professional finish
-

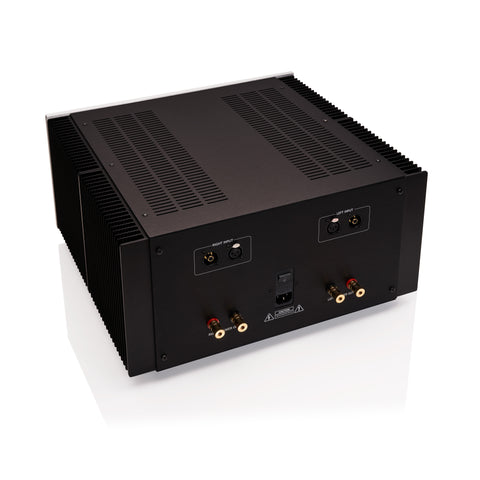

Please note: Some photos include the back panel parts kit, which must be purchased separately.
Covers
- 2 x aluminum top/bottom covers, with 6 rows of venting strips, to provide an ideal balance between airflow and stiffness
- Bottom panel is pre-drilled for anti-vibration feet (included)

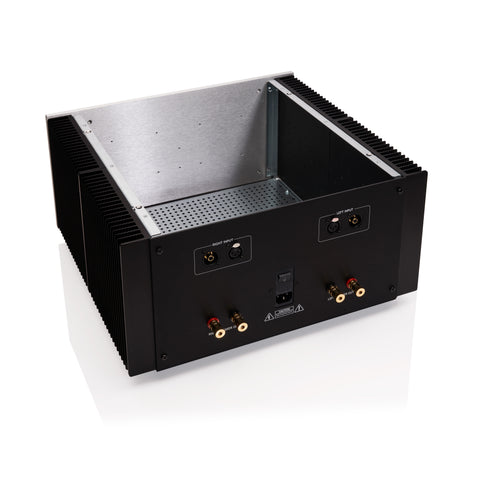

Perforated Interior Baseplate
- Galvanized steel. Pre-drilled hole pattern allowing for easy mounting of all diyAudio PCBs
- Riser panels can be combined for unlimited horizontal and vertical mounting configurations
