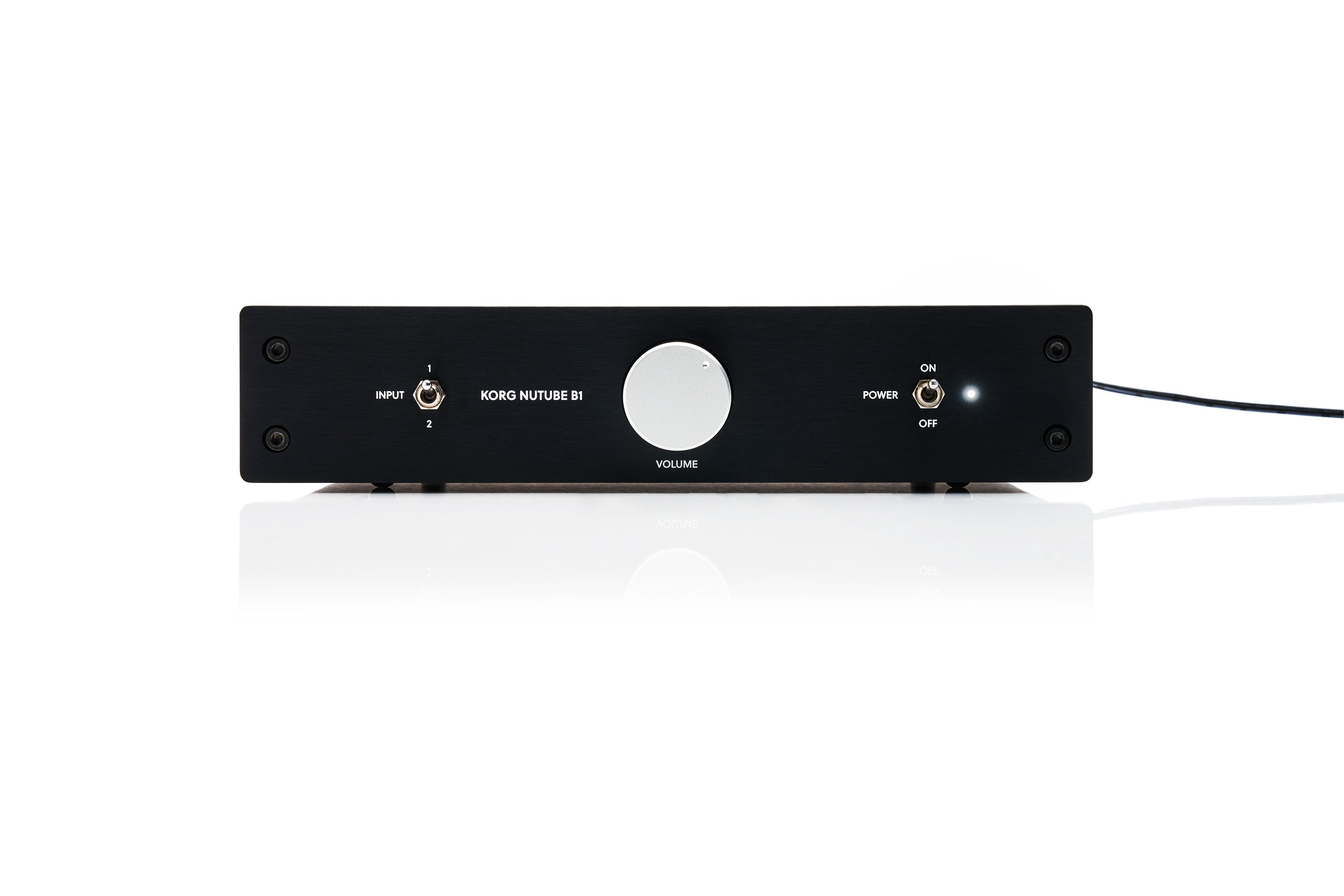

Korg Nutube B1 Full Kit
Korg Nutube B1 (also known as B1K) pre-order is now open!
Following great feedback about our "pioneer" batch of kits and chassis, we are now finally opening pre-orders for the production run of Korg Nutube B1 full kits.

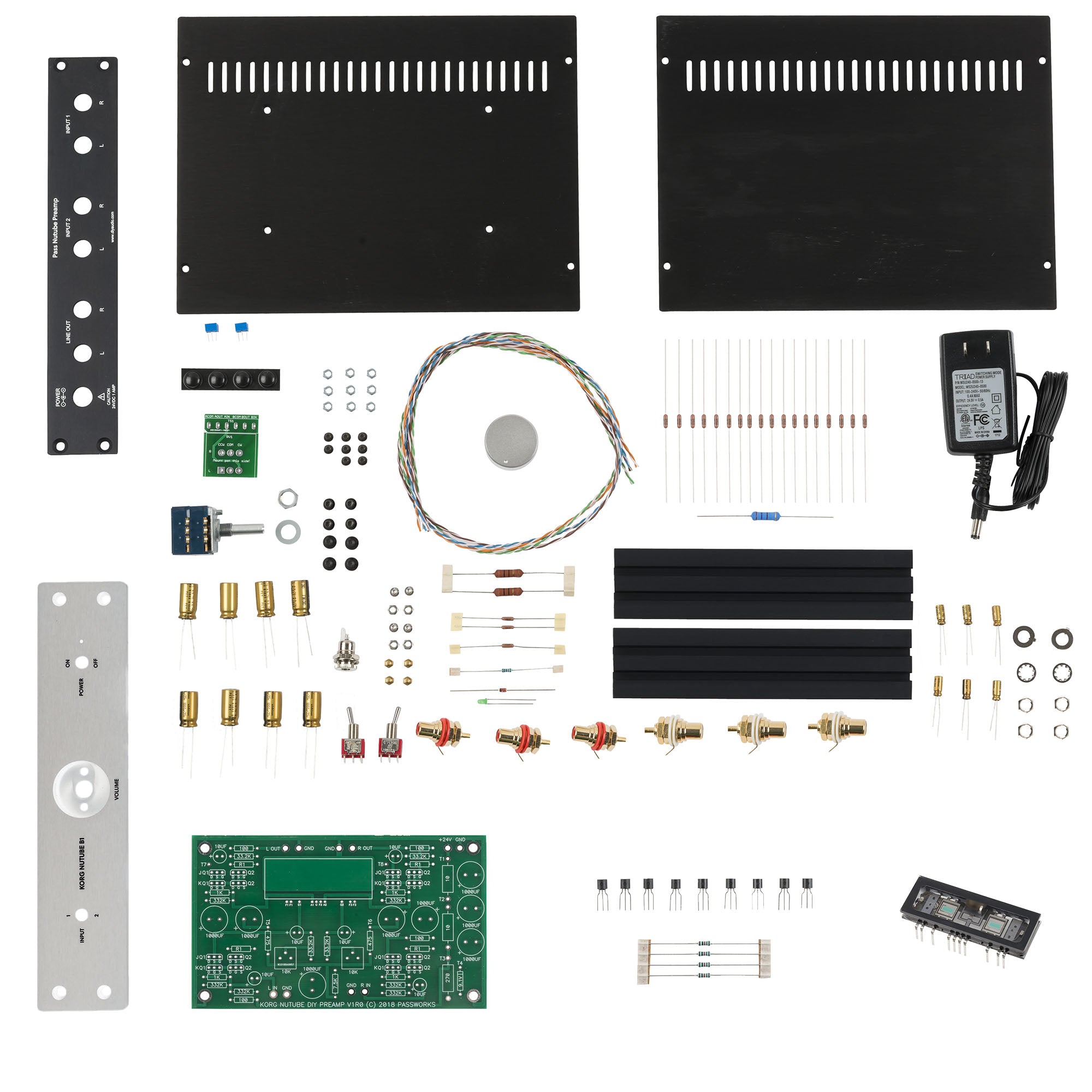

A detailed build guide from 6L6 will be ready before shipping. A pre-order-only silver faceplate option will be available for purchase only while the pre-order is open.
Korg Nutube B1 Pre-Order Key Dates
- Pre-orders open April 20th 2020
- Pre-orders close April 27th 2020, or earlier if we reach our production limit
- Shipping will occur once production is complete (current estimate is sometime late Q3, 2020, see the B1K pre-order status page for details)
For answers to the following questions and more please see the B1K Pre-Order Status Page:
- General information about diyAudio Store pre-orders
- Opening, closing and shipping dates
- Cancellations and refunds
- What happens if you miss out
- Can I change my shipping address?
- Risks and challenges statement
Discussion threads / Links:
- Technical discussion: B1K main thread
- Pre-order Q&A in the B1K pre-order Q&A thread
- Prototype feedback: B1K pioneer batch feedback
- Pre-order status: B1K pre-order status page

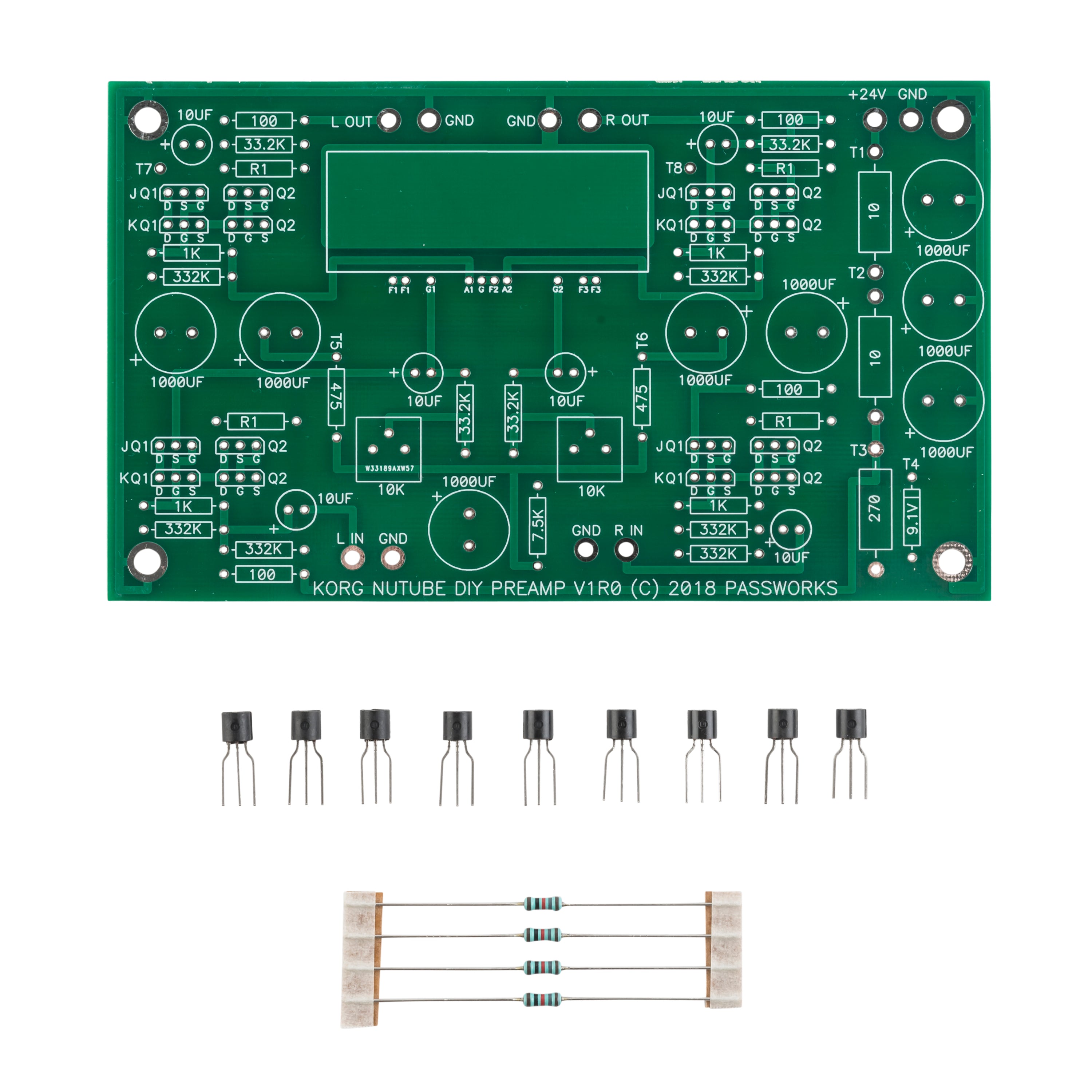

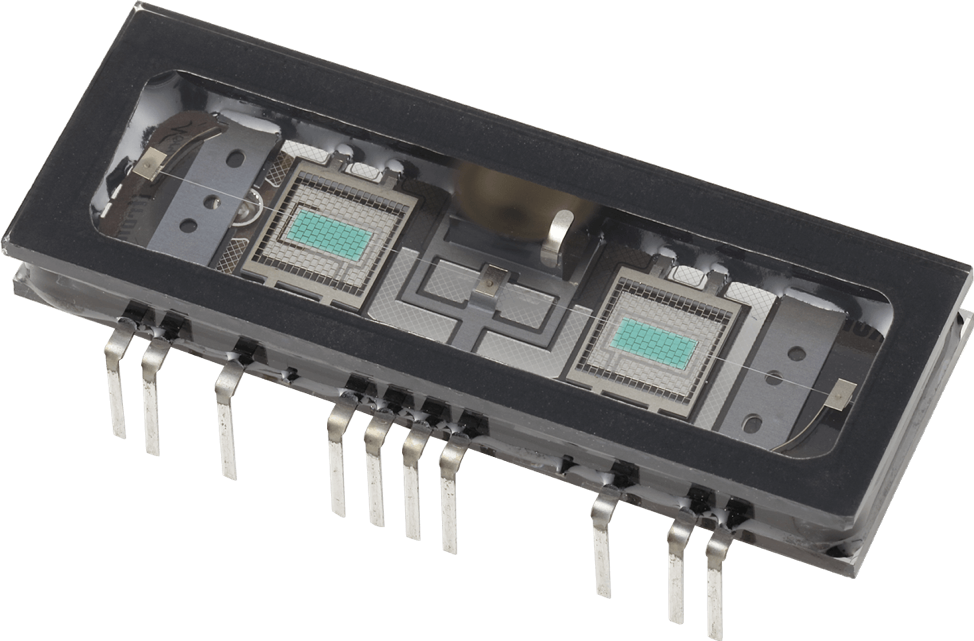

At the Burning Amp Festival in 2017 Nelson presented a pre-amp using the Korg Nutube dual triode. The latest revision of the circuit available is now available complete with Fairchild JFETs and all directly supplied by Nelson Pass.
Please check the following links for more information:

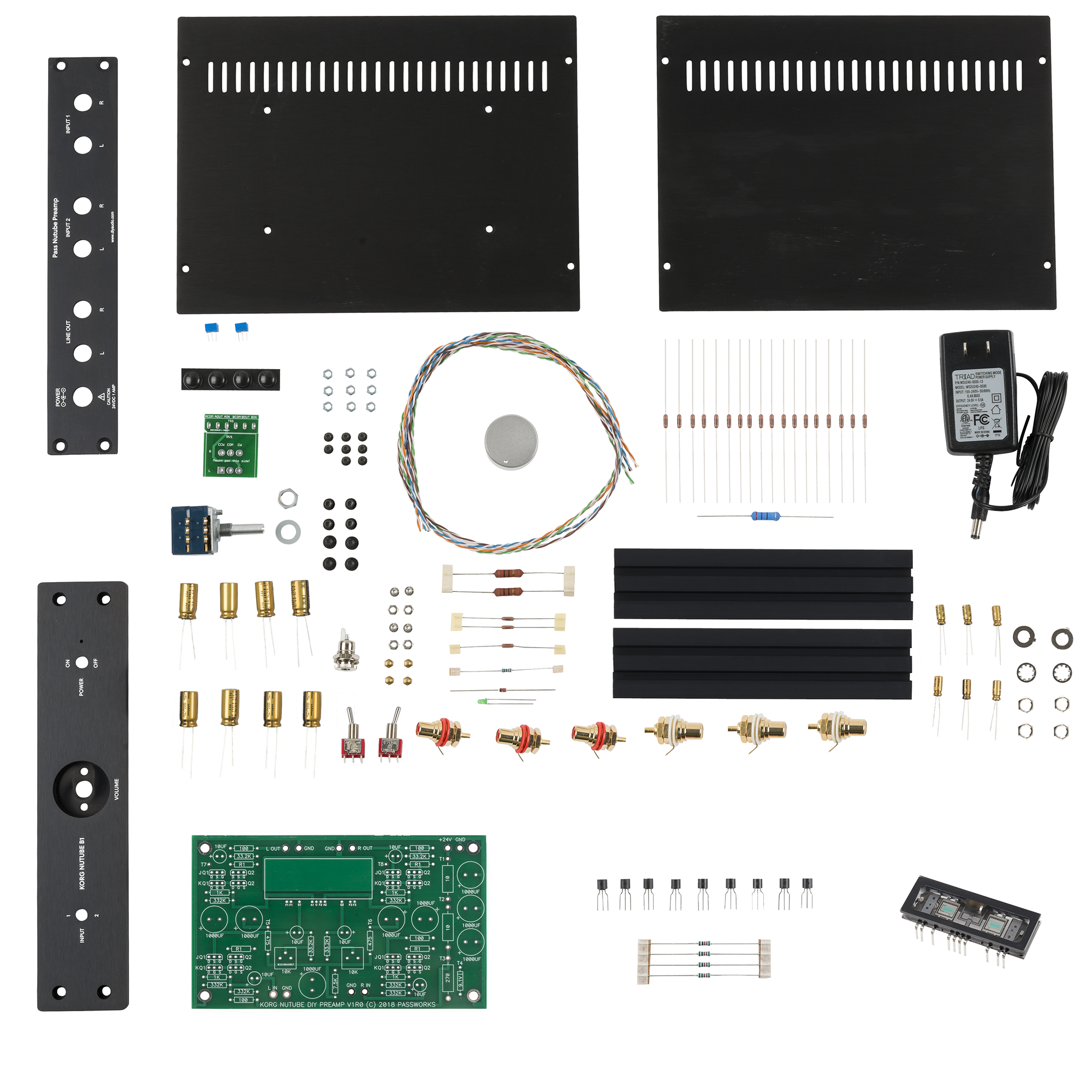

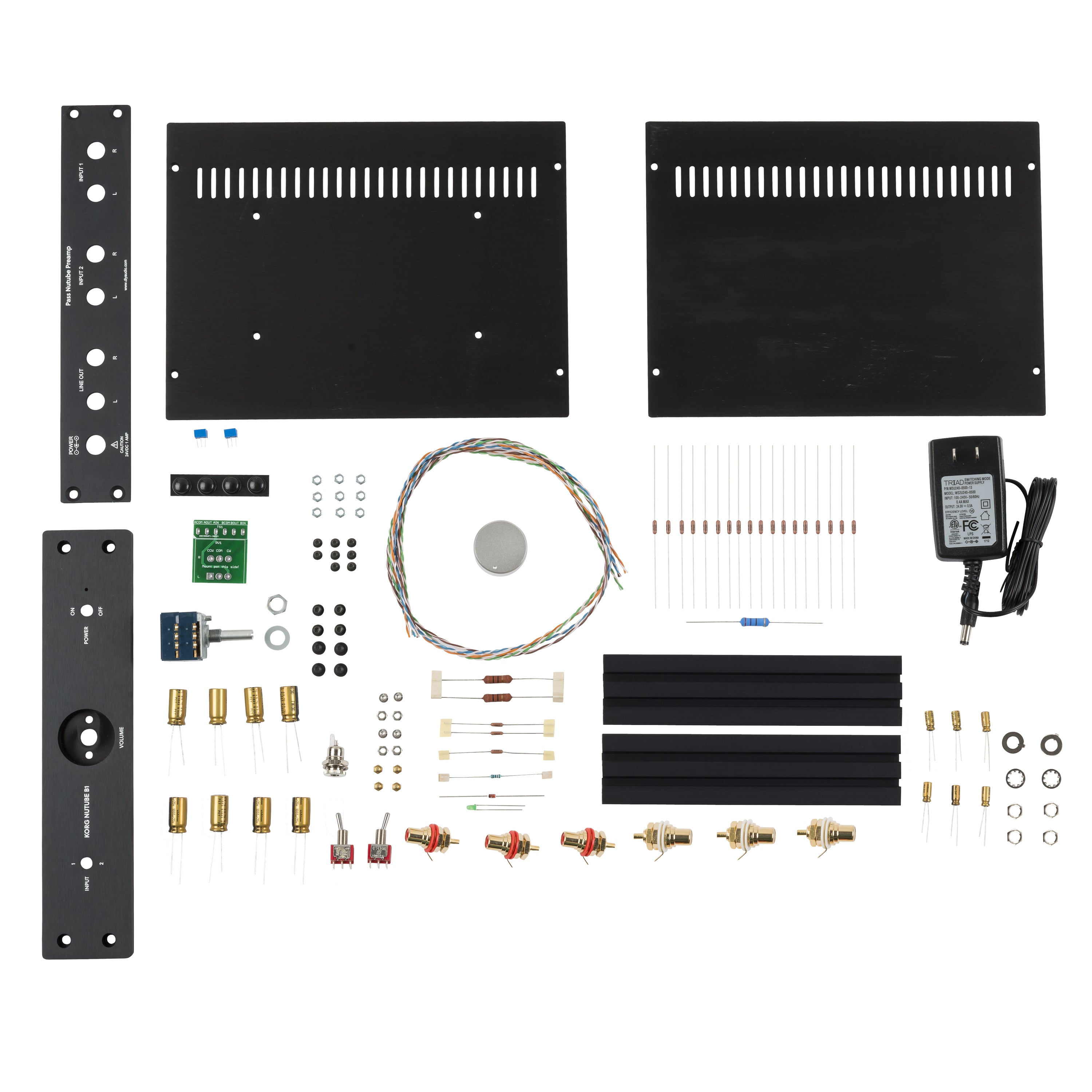

There are 4 elements to building a complete preamplifier. Purchase the elements separately, or all together as a "full kit" bundle for $299. To build a complete preamplifier you will need:

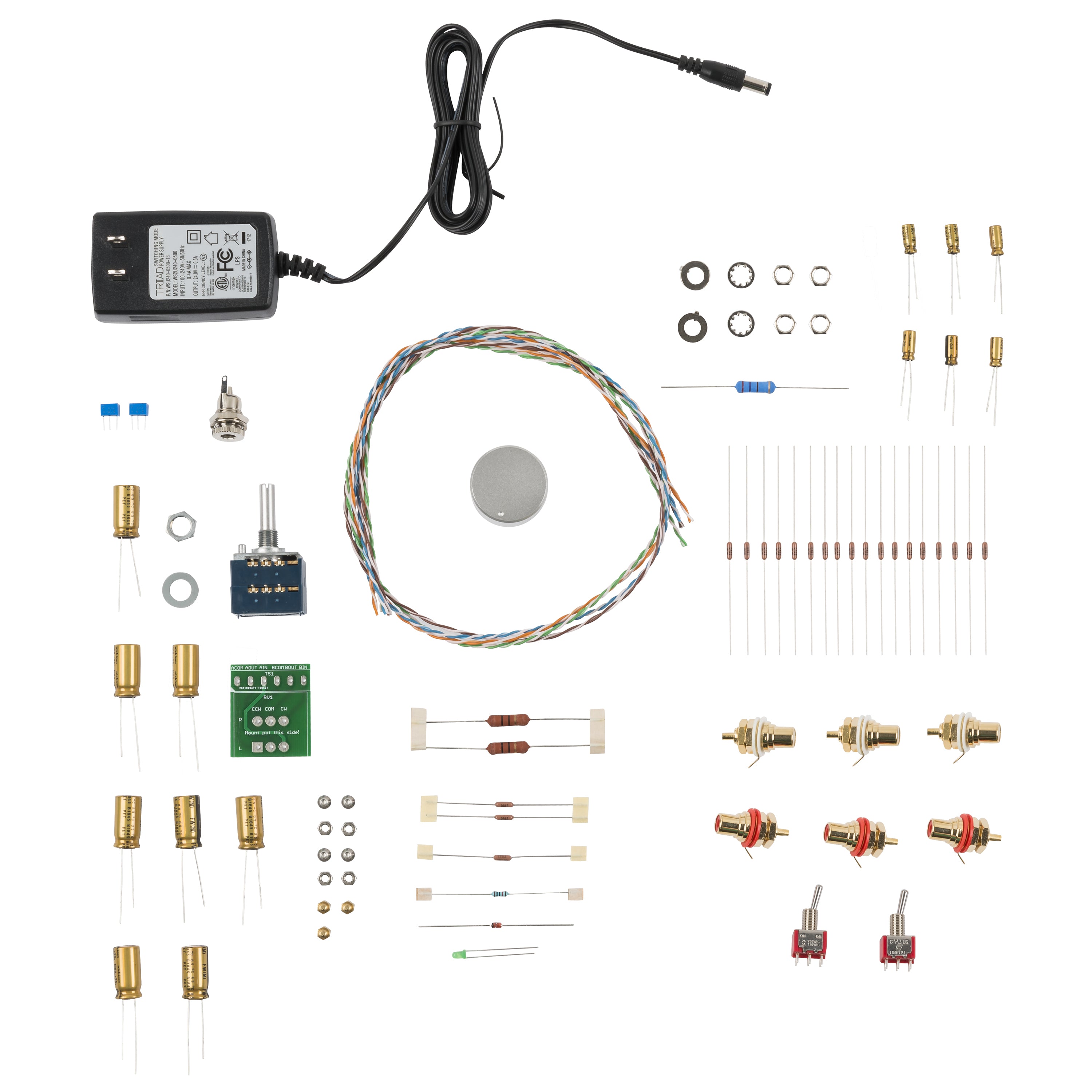

What's in the completion kit?
Everything else you need to complete the project other than 1, 2 and 3 above. It's an assortment of bits and pieces that joins the Nutube, PCB and Chassis together, turning the whole things into a "full kit", hence the name "completion kit".
The included "wall wart" style power adapter supports an input voltage of 90-264V and has a US style plug. If you don't live in the US you will need to obtain a suitable plug adapter.

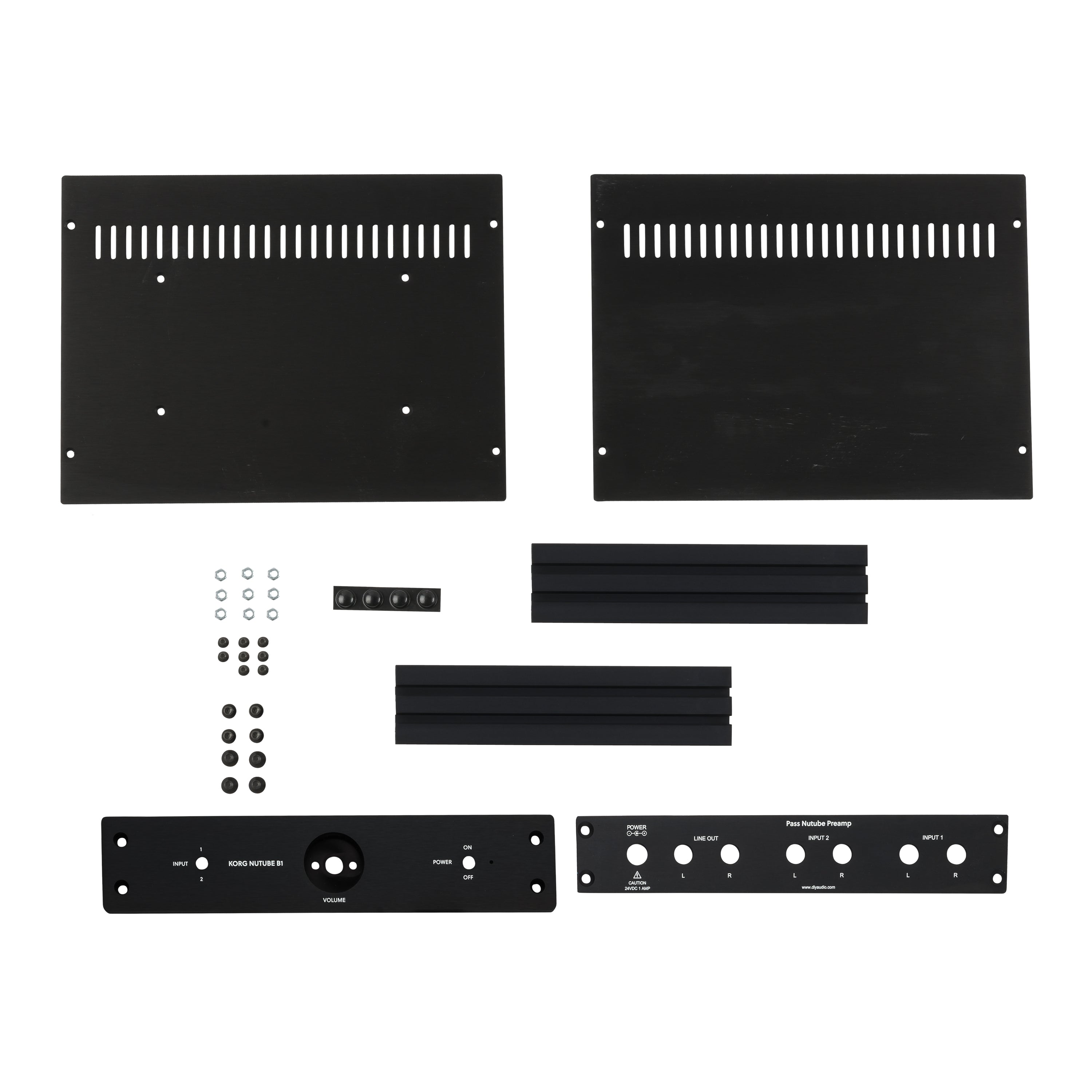

What are the chassis specifications?
- Galaxy 230x170 full aluminum chassis, anodized black with white printing
- Internal dimensions 40x210x170mm
- LED hole ø2mm
- Left switch
- Hole ø6.5mm
- 15mm x 15mm square rear recess, 7mm deep
- Right switch
- Hole ø6.5mm
- 15mm x 24mm rectangular rear recess (allows for switch and LED), 7mm deep
- Potentiometer hole ø10mm, with ø32mm round recess in the front ø8mm deep

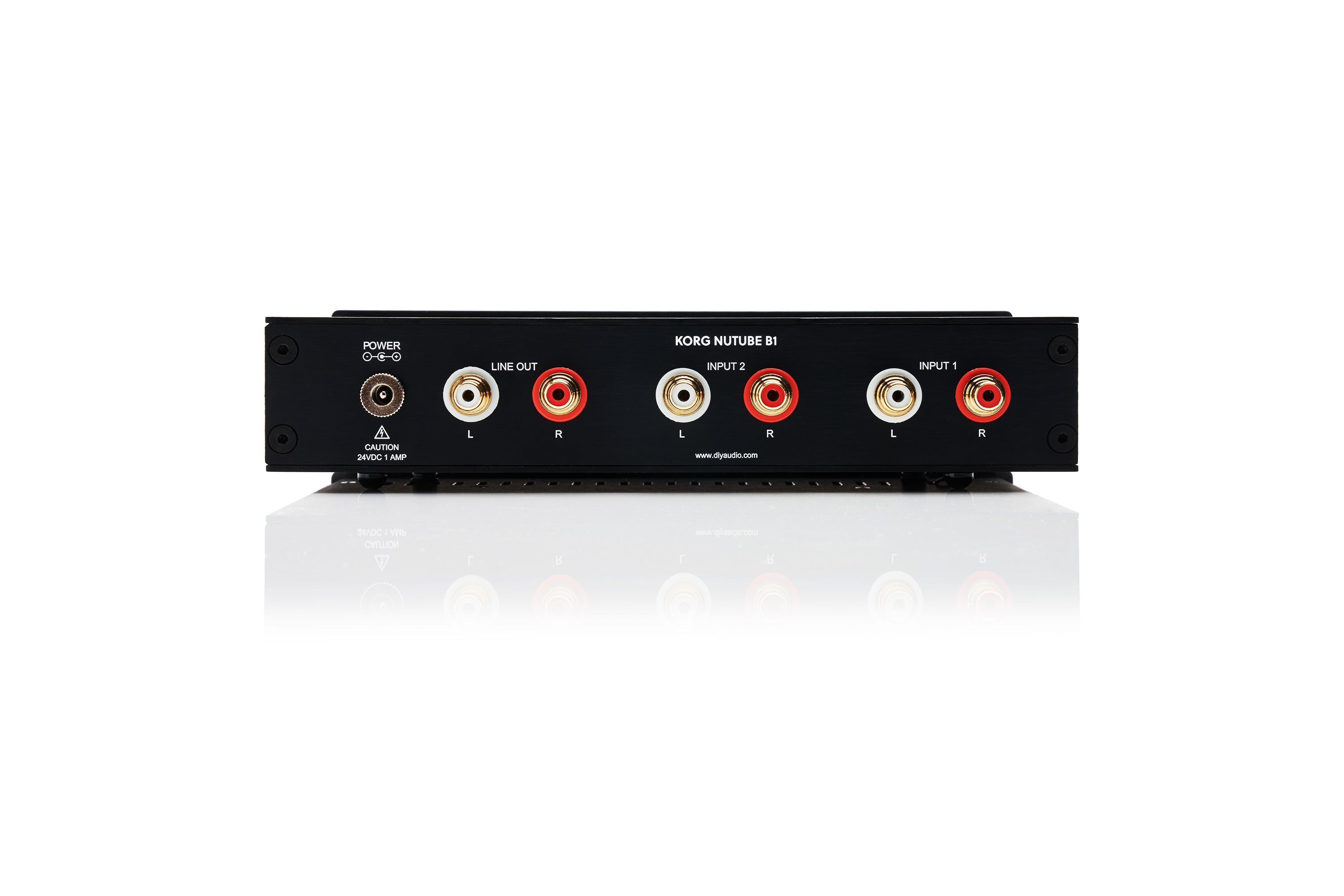

- Rear RCA holes ø10mm
- Rear power switch hole ø11mm
Great Quality Board. easy to get parts from Digikey. everything fit perfectly.
What a wonderful sounding preamp. Build took me about 4 hours as someone with moderate experience with electronics and a soldering iron. This is now sitting in front of Aleph-J and I'm in love with the sound. Microphonics were a problem but not hard to tame following others recommendations. Now just to finish my new DIY speakers......
I couldn't get over how EVERYTHING was in this kit. All quality parts. These guys know what they are doing trust me, cause I surely don't. I've never built anything electronic in my life. I'm the definition of beginner and I finished this amp in 3 days! It sounds amazing. Worth more than the price. I highly recommend this kit.
Kit arrived very well packaged . With help from the build thread it was a straight forward build. I placed a piece of carpet underlay felt under the Nutube and the silicone ear pieces from earbuds on each mounting post. It is hooked to a M2x and sounds very nice.
Paired with a brace of ACA my system has never produced cleaner clearer music. My much loved 30 year push pull triode valve amp will be put away in it's original packing bested by a Korg Nutube and single ended transistor power. The Korg buffer has been favourably reviewed by professional audio reviewers against other pre-amps costing more than 10 times as much, without hearing such things it's hard to argue. I just need to build a phono stage to plug in to it now.
The Wall wart power supply that requires a travel adapter is a big disappointment - given a choice I'd opt for brick with a choice of international plugs (or a plug I can cut off and replace). Alps volume pot keeps the cost down but there are better sounding options when you are ready for not too much more- TKD, Tocos Cosmos etc. I built mine in Galaxy 2 U case so that I could mount the Korg vertically in full view and get more inputs into the back of the case with an elma switch and match the silver ACA cases I already have.
sourced chassis, Nutube, Board and FETS from DIYAudiostore
used Dale resistors, Nichicon KZ and Elna caps, Alp pot,, the sound, no cursing but its you know great. very great looking and pro with the chassis and can't believe the size. Does ring on input change but stops. Much Improved when hot glued Nutube to board. Value/price can't be beat. Using with DIYAudio F5 also built this year. Loving both. Much gratitude guys and thank God for NP
I purchased the B1 with Korg NuTube PCB and triode last year and waited patiently for the chassis kit to be released. Surprisingly, Jason and Jim also released a Completion Kit, which eliminated my need to acquire the caps, resistors, and diode to complete the PCB. I’m glad I waited as this kit was easy to assemble with Jim’s (6L6) photos and advice. I still have to work to reduce/eliminate the NuTube microphony that flares up occasionally, but this is a special line stage preamp with incredible detail, separation, a large and deep soundstage with excellent imaging, and organic tonality. This is a bargain and will best many vacuum tube line stage amp kits currently on the market at a lower cost.
Thank's a lot for that nice preamp kit, that makes may corona-lock quite bearable so far. The JFets were very well selected and the parcel quite fast on the way - the delay was at the german custom... Assembling was easy due to the cute layout and proper made PCB. If there really are differences at the microphonic behavior of the tube, i got one of theeeese, so i couldn't let it shine through a frontglass as imagined before. But with a double layer of plaster-board-absorber-foam and a piece of lead it's finally quite on the board. While thinking about the case for it and an appropriate amp i am listening with a 300Ohm-Sennheiser - and it sounds great! All the best greetings and wishes from germany to You to stay healthy and well in this times!!!
