Burning Amplifier Single-ended Bias & Output Stage
Burning Amplifier Single-ended Bias & Output Stage

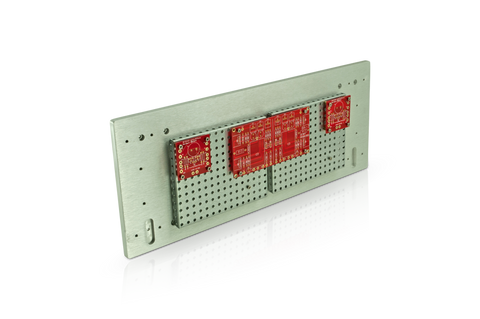

Burning Amp gain stage and bias boards mounted on a riser panel mounted on the front faceplate of a 4U Deluxe Chassis (chassis and riser panels sold separately)

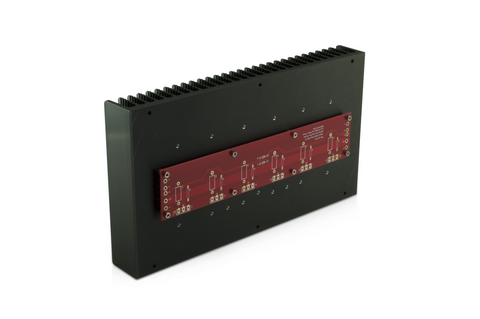

Burning Amp output board mounted on a 4U Deluxe Chassis heatsink (chassis sold separately)

Burning Amplifier Single-ended Bias & Output Stage

$ 29.00 USD
Product
Burning Amplifier Local Feedback Gain Stage
Burning Amplifier Zero Feedback Gain Stage
Burning Amplifier Single-ended Bias & Output Stage
Burning Amplifier Complementary Bias & Output Stage
Ships from our warehouse in Massachusetts
What's in the Box?
  • 2 x Burning Amplifier Single-Ended Output Stage PCBs
  • 2 x Burning Amplifier Single-Ended Bias PCBs
Product Description
The Burning Amplifier series is an ecosystem designed by Nelson Pass comprised of two front ends (feedback, and zero feedback), and two output stages (single ended, and complementary). These 4 parts are all compatible with each other and can be used interchangeably to create 4 different styles of class A amplifier:
  • Local feedback, Single Ended
  • Local feedback, Complementary
  • Zero feedback, Single Ended
  • Zero feedback, Complementary
Additionally, the zero feedback front end has proved very popular as the basis for the BA3 Preamplifier.

Please visit the Burning Amplifier Helpdesk Thread for any questions you might have and for a definitive list of links to all articles and discussions about the Burning Amps.

Boards designed for mounting active component directly to heatsinks share a common universal mounting specification so you can tap your holes once and then re-use those holes for future projects, very handy if you'd like to experiment with several designs on a single chassis!

Please view the Burning Amplifier Configuration Guide to choose the appropriate PCBs for your your desired Burning Amplifier.



These boards along with the  with your components and the P-BAGS-1V20 gain stage, then add your own power supply, chassis and heat sinks to complete the BA-2 amplifier in the 3 output pair per channel configuration recommended by Nelson Pass.

Please visit the Burning Amplifier Helpdesk Thread for any questions you might have and for a definitive list of links to all articles and discussions about the Burning Amps.

Additional Information

Dimensions 60mm x 50mm
Mounting holes UMS Heatsink Compatible
Number of boards included 4
Layers 2
Board Revision 2.0
