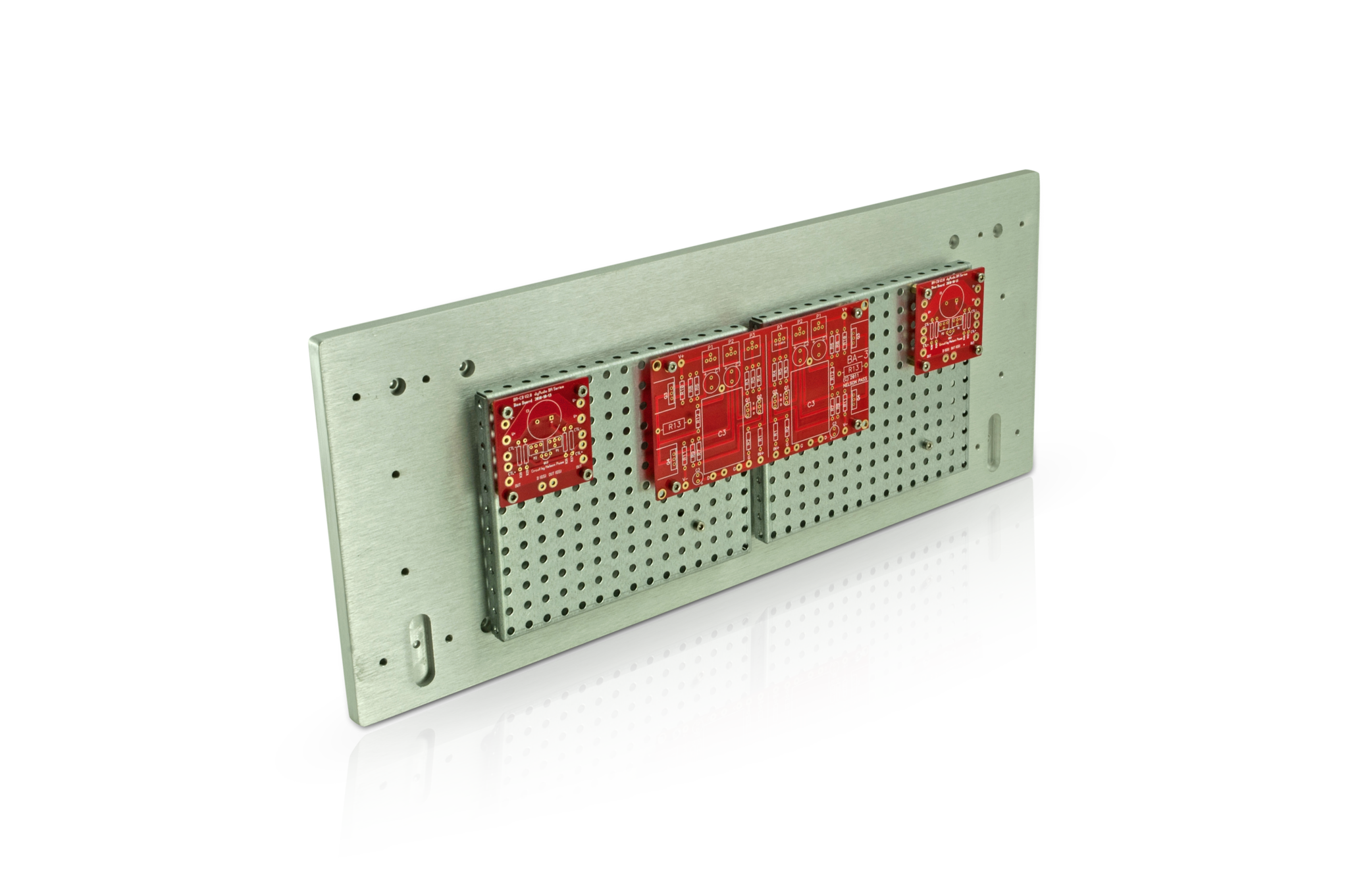

Burning Amp gain stage and bias boards mounted on a riser panel mounted on the front faceplate of a 4U Deluxe Chassis (chassis and riser panels sold separately)

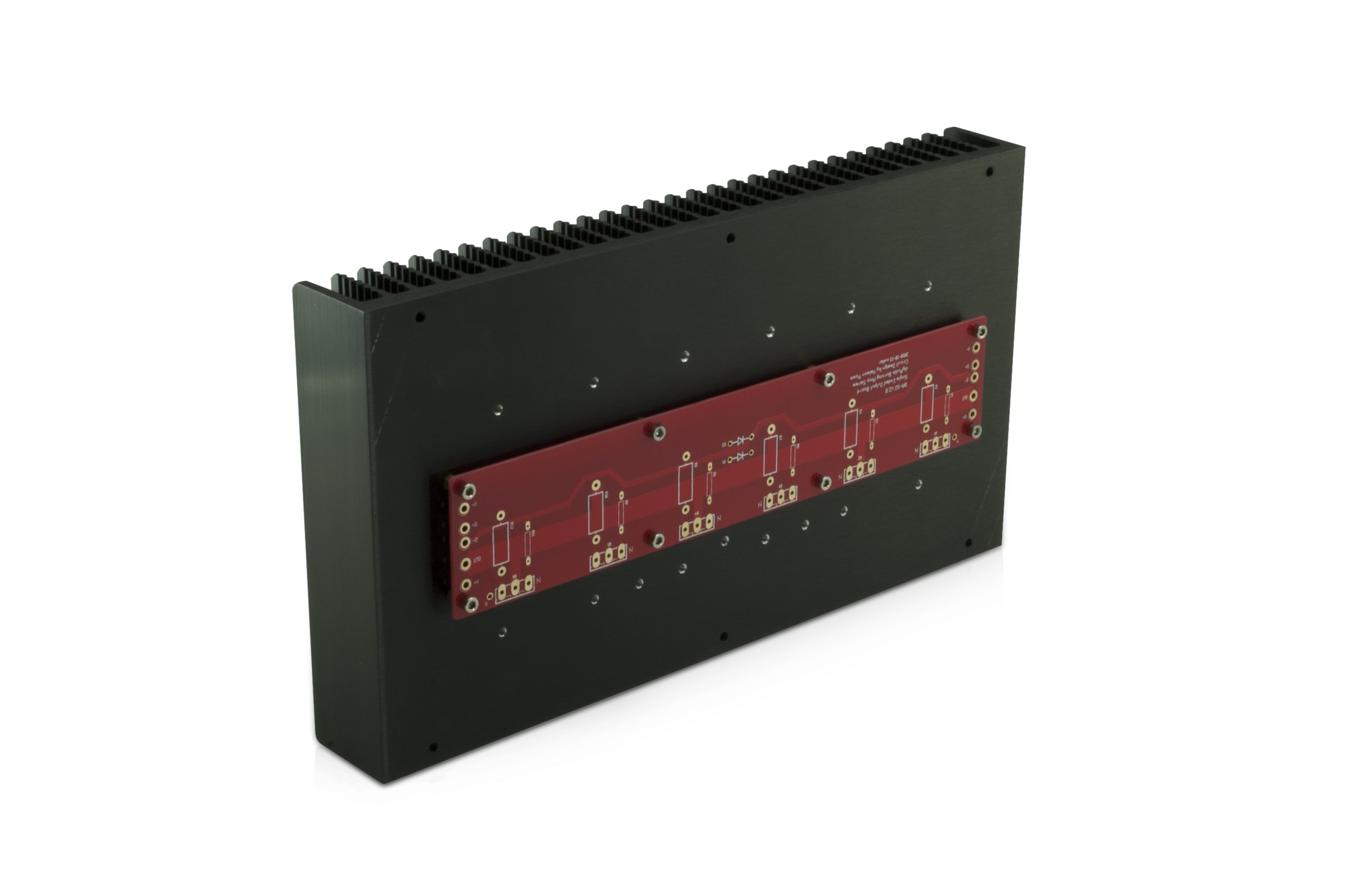

Burning Amp output board mounted on a 4U Deluxe Chassis heatsink (chassis sold separately)

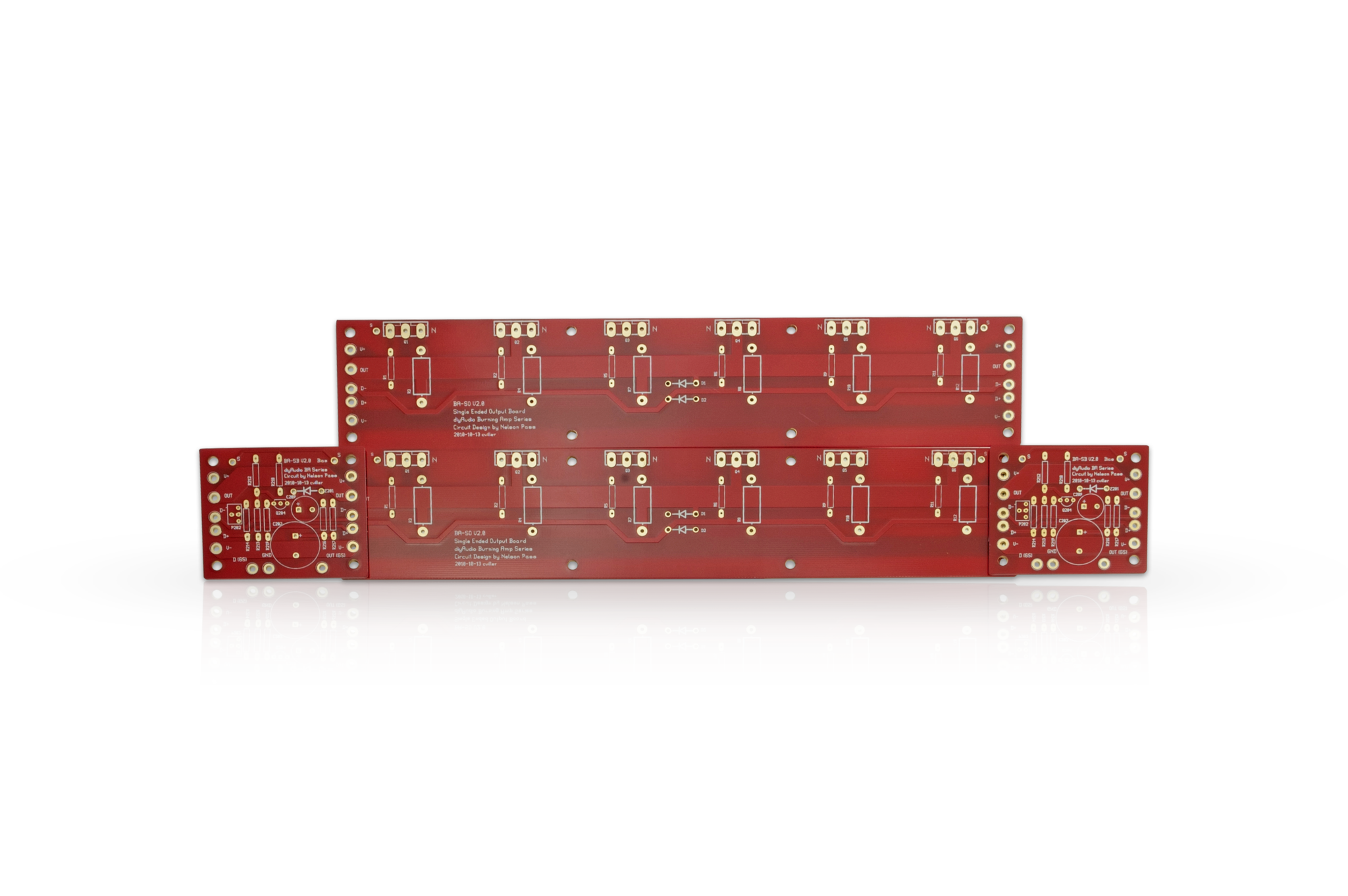

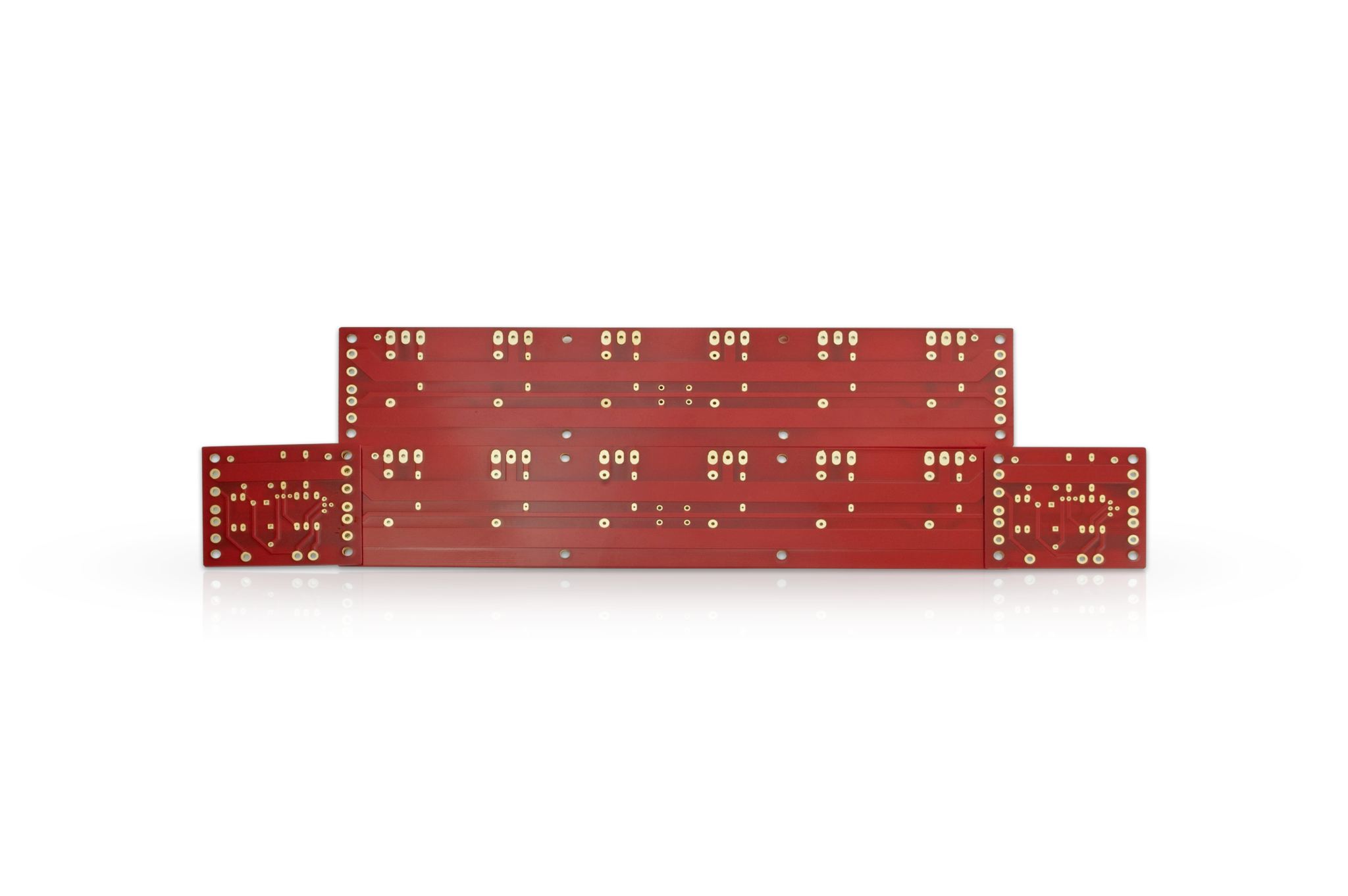

Burning Amplifier Single-ended Bias & Output Stage

Part of the Burning Amplifier project
Choose ConfigurationCurrently Selected: S/Ended Bias & Output
zero-feedback-gain-stage
Zero Feedback Gain Stage
$ 14.00 USD
s-ended-bias-output
S/Ended Bias & Output
$ 29.00 USD
comp-bias-output
Comp. Bias & Output
$ 29.00 USD
$ 29.00

Two P-BASO-2V20 output boards and two P-BASB-2V20 bias boards. The bias boards are only available in this set. Populate this set with your components and the P-BAGS-1V20 gain stage, then add your own power supply, chassis and heat sinks to complete the BA-2 amplifier in the 3 output pair per channel configuration recommended by Nelson Pass.  If you want more output devices order another pair of output boards here.

Please visit the Burning Amplifier Helpdesk Thread for any questions you might have and for a definitive list of links to all articles and discussions about the Burning Amps.

Additional Information

Dimensions 60mm x 50mm
Mounting holes UMS Heatsink Compatible
Number of boards included 4
Layers 2
Board Revision 2.0

Burning Amplifier Project

  • Power Amplifier
  • Designed by Nelson Pass
  • Advanced Difficulty
  • Basic Build Guide
  • Only PCBs Available
Contributors
  • Nelson Pass (Parent Project)

Visit the Burning Amplifier project page for more information about this project.
