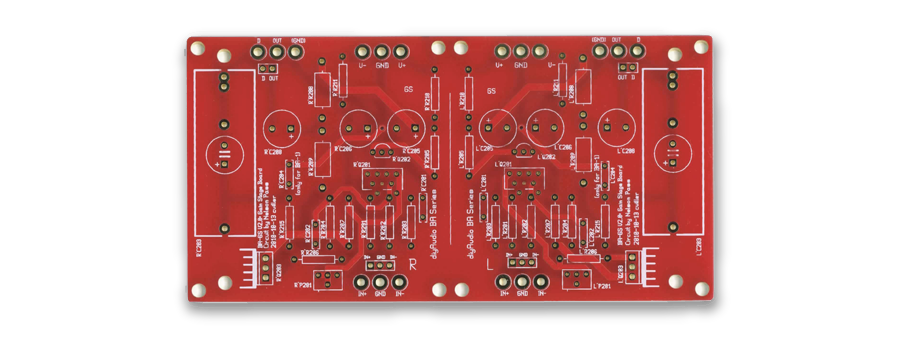

Burning Amplifier Gain Stage Board (BAGS) which handles voltage gain for two channels when you populate it with your components. This board is required for both the single-ended BA-1 amp and the complementary BA-2 amp.
BAGS is the Burning Amplifier Gain Stage board. Being the Front-End, this is where all the signal voltage gain of a Burning Amp comes from. It's main purpose is to provide adequate gain to drive the succeeding output stage of a Burning Amp assembly.
For use as a Burning Amp, it requires bias boards and output stage. However it can also be used standalone as a pre-amplifier.
Please visit the Burning Amplifier Helpdesk Thread for any questions you might have and for a definitive list of links to all articles and discussions about the Burning Amps.
ADDITIONAL INFORMATION
| Dimensions | 140mm x 70mm |
|---|---|
| Mounting holes | No |
| Number of boards included | 1 |
| Layers | 2 |
| Board Revision | 2.0 |
